mobile keyboard

#1 · March 10, 2019, 9:22 pm

I have a problem with the mobile's keyboard, when I focus on TextInput the application shrinks. How can I avoid this problem without disabling "auto size content to fit device" because if I disable this option then that time the application only works for one or two devices.I don't want this to happen . I want a logical way to solve this problem. In this condition, the application should get a scroll bar. You can see this problem in this picture.

https://tinyurl.com/y534cqq5

link for sample:

https://tinyurl.com/yxa5ltgx

application link:

https://tinyurl.com/yyp5xnah

#2 · March 10, 2019, 11:12 pm

Have you tried slScaleAppFitWidth command instead of the autosize App properties?
I have done some research and it seems adding this code to the config.xml generated file could change the way the keyboard works sliding over the content instead of pushing it up:

<activity android:windowSoftInputMode="adjustPan"> </activity>

Look here for more information:

https://stackoverflow.com/questions/36134534/cordova-android-keyboard-push-up-content

Please let me know if you have success.

#3 · March 11, 2019, 8:26 pm

I couldn't find a way for solving this problem..

asmat has reacted to this post.

#4 · March 11, 2019, 8:31 pm

Quote from asmat on March 11, 2019, 8:26 pm

I couldn't find a way for solving this problem..

Hi asmat

Try with:

SetObjectStyle "PageName" "margin-top" "0px"

it should work.

#5 · March 12, 2019, 9:14 am

where should I put this piece of code?

I have trialed it at the startup,page enter and keydown of textInput but, it doesn't work ....

#6 · March 12, 2019, 11:23 am

I have been looking into this and can't find a solution... by now.
Sorry.

#7 · March 12, 2019, 4:32 pm

Quote from asmat on March 12, 2019, 9:14 am

where should I put this piece of code?

I have trialed it at the startup,page enter and keydown of textInput but, it doesn't work ....

Try to add the page height with [NAB.ClientHeight] on page enter .

Doing this the page height won't change on showing keyboard.

#8 · March 12, 2019, 4:33 pm

Quote from luishp on March 12, 2019, 11:23 am

I have been looking into this and can't find a solution... by now.
Sorry.

Hi bro

Tray to fix this on next update, please.

Thanks

asmat has reacted to this post.

#9 · March 12, 2019, 8:59 pm

I solved this problem thank you all...

asmat has reacted to this post.

#10 · March 12, 2019, 9:19 pm

Quote from asmat on March 12, 2019, 8:59 pm

I solved this problem thank you all...

You should share the way you solved this, so other users can use it.

#11 · March 12, 2019, 10:24 pm

you should use this code at startup:

SetVar [h] [NAB.ClientHeight]
SetVar [w] [NAB.ClientWidth]
TopCenterApp
SizeObject "Main" [w] [h]
SizeObject "Container1" [w] [h]

"Main" is here the name of page.....

luishp, Vadim and 2 other users have reacted to this post.

#12 · February 5, 2021, 1:15 pm

Quote from asmat on March 12, 2019, 10:24 pm

you should use this code at startup:

SetVar [h] [NAB.ClientHeight]
SetVar [w] [NAB.ClientWidth]
TopCenterApp
SizeObject "Main" [w] [h]
SizeObject "Container1" [w] [h]

"Main" is here the name of page.....

Also you can use cordova status bar plugin and use below code in startup event:

BeginJS
StatusBar.hide();
EndJS

also you have to add these lines in confix.xml:

javadrajabihakami has reacted to this post.

#13 · July 27, 2021, 12:18 am

The solution of:

you should use this code at startup:

SetVar [h] [NAB.ClientHeight]
SetVar [w] [NAB.ClientWidth]
TopCenterApp
SizeObject "Main" [w] [h]
SizeObject "Container1" [w] [h]

"Main" is here the name of page.....

I have tried this in PWA running on IPhone and the application still moves when the keypad is activated as you enter a numeric input. Nothing seems to prevent to the app moving.

Has anyone tried and solved this problem for IPhone when viewing a PWA?

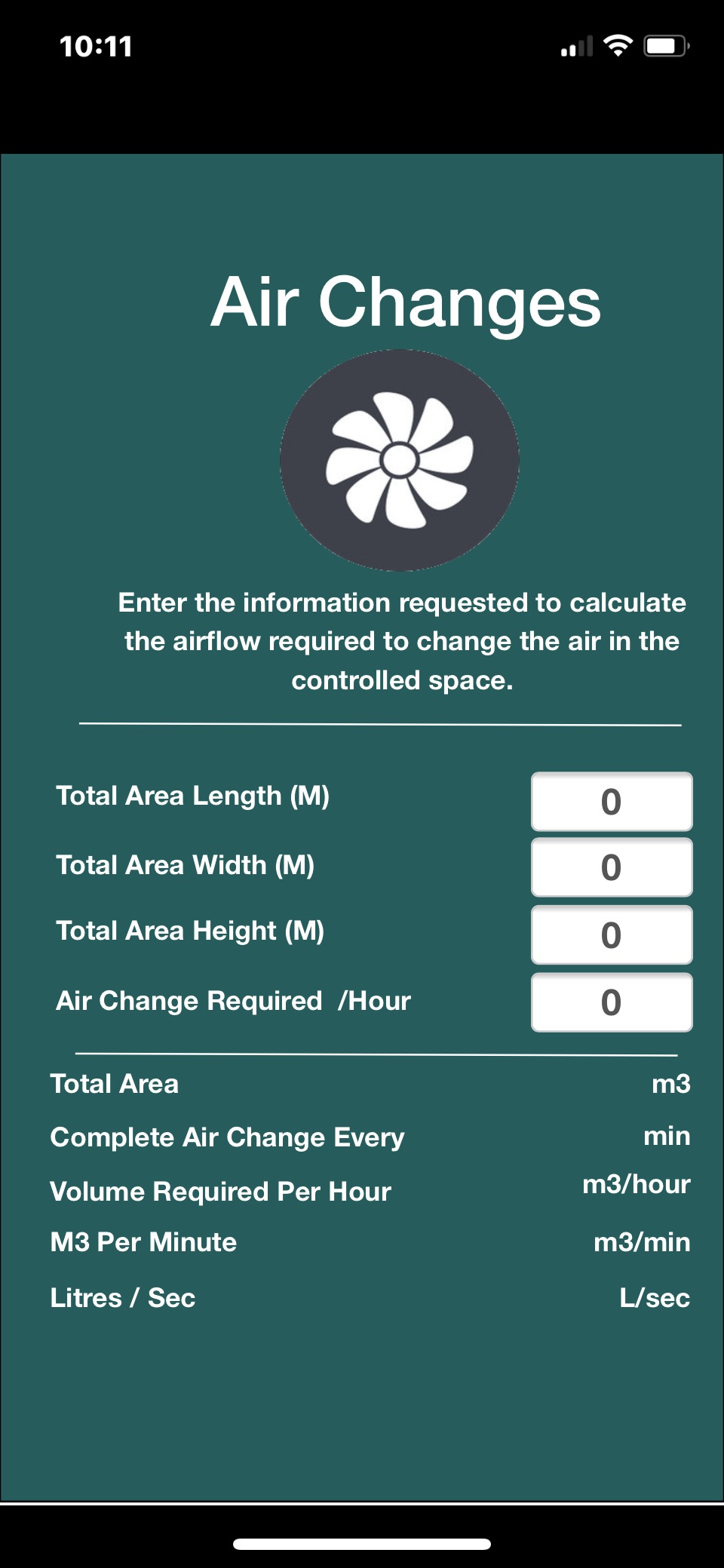

Screenshot 1 - Normal

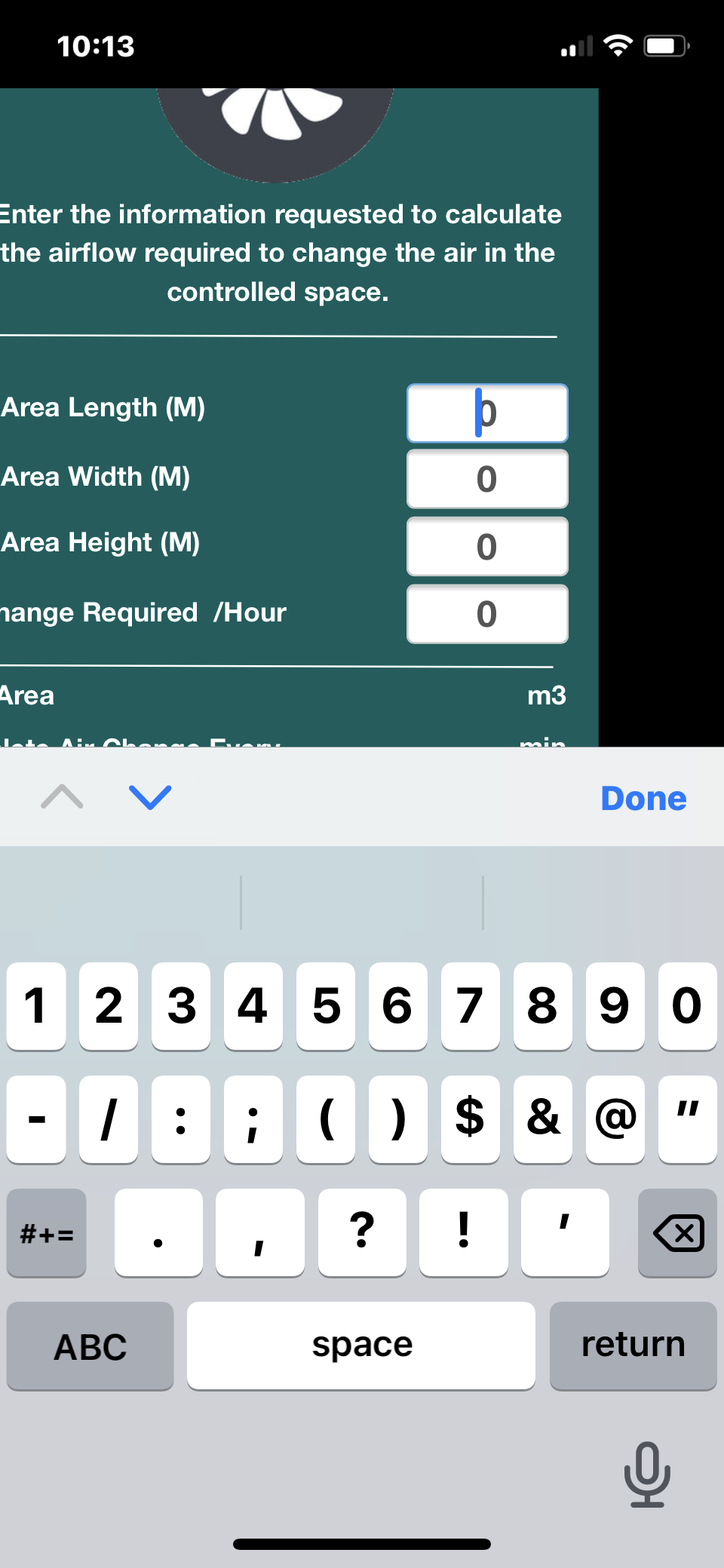

Screenshot 2 - Keyboard Showing - App Moved

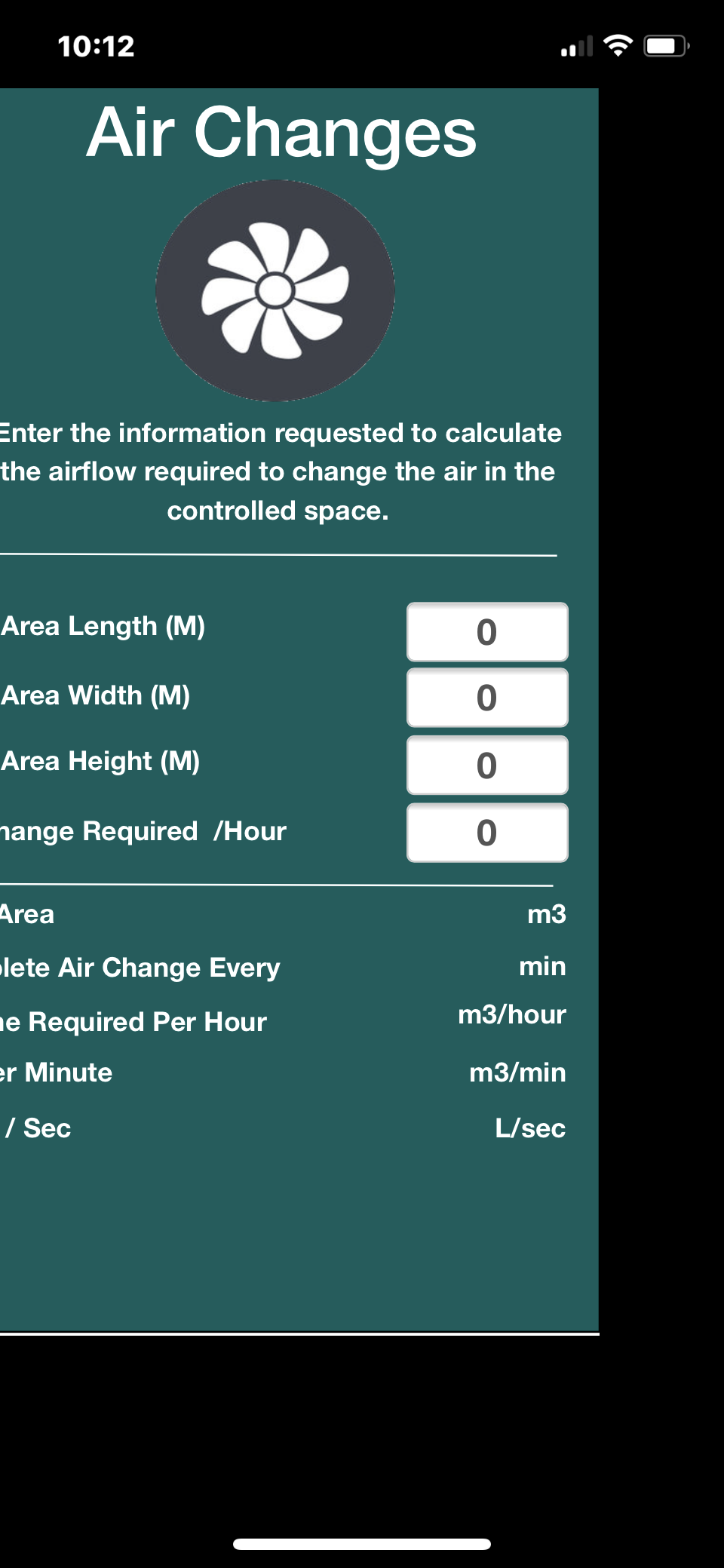

Screenshot 3 - After keyboard hidden app still moved.

Uploaded files:

You need to login to have access to uploads.

#14 · July 27, 2021, 8:58 am

@jason-roberts I think the problem comes by the way you are scaling your app.
It seems your app width is greater than the device screen width.
Which option are you using?

Possibilities:

Project > Properties > Size > Autosize
Project > Properties > Size > Responsive Design
FitAppToScreen command
slScaleAppLetterBox command
slScaleAppLetterBoxMax command
slScaleAppDeform command
slScaleAppFit command
slScaleAppFitWidth command
slScaleAppFitHeight command

Vadim has reacted to this post.

#15 · July 27, 2021, 9:13 am

Yes I had put the scale controls in at start up. When removed it seems to fix it. I need to see if the scaling can still work though for other devices so more testing needed. Seems to have fixed the problem described.

Thank you very much.

luishp has reacted to this post.

#16 · July 27, 2021, 11:28 am

Update.

Back to the start again as if I remove the commands to scale the application it wont look correct on devices with different screen resolutions. The auto size does not work correctly with text and objects it seems, so have to use the

slScaleAppFitWidth
slScaleAppFitHeight

The keyboard show on entry to a field seems to cause the problem above only when the scale commands above are in the startup, otherwise it is fine.

#17 · July 27, 2021, 10:24 pm

Last update.

The only way seems to be responsive design to fix the issue with keyboard focus and scaling.

#18 · September 2, 2021, 8:15 am

FINALLY!

For those that have the same issue. This will be good.

Thanks to Luis the solution was simple and is actually a fix for general use between devices including desktop browser at least for me anyway on this project.

In the events:

FitAppToScreen false "top" "center"
AppBackgroundColor "#ffffff"

Obviously this is for white background. Choose what you need.

Then ensure the setting for dynamic size are all off. That bit was counter intuitive!

Anyway works well for me. No problems with the keyboard moving the app now.

Thank you Luis!

luishp and Vadim have reacted to this post.
