NEW PLUGIN! Rounded Corners on objects...
Quote from Anthony LaTorre on November 22, 2025, 6:46 amNow you can apply rounded corners to your VisualNeo Win Buttons, Containers, Rectangles, and Simple Text Objects... You can also add colored rounded borders to objects in your apps too...
Command Examples:
GetObjectHandle "Container1" "[Con1Handle]" .first get the object handle into a variable...
uiRoundCornersSmooth "[Con1Handle]" "40" Sets the radius of Container1 to 40.Add Borders:
uiRoundCornersWithBorder "[Con1Handle]" "20" "5" "0,0,0" .Parameters: "Object Handle" "Radius" "Border-Width" "RGB colors"uiUndoRoundCorners "[Con1Handle]" will remove the rounded corner styles on an object.
The only limitation is you can't put an object with rounded borders over another object... It won't render properly. But there is a workaround, and I have included images below...
1st Image is the standard VisualNeo Win look. (Included just for comparisons...)
2nd image is rounded corners on objects with no border.
3rd image is rounded corners with colored borders.
4th image is rounded corner objects (no borders) overlayed on top of each other to simulate a border. (Workaround)*Note: I tried styling a Text Entry object but the scrollbars disappeared when Applying the rounded corner style.
*Try it on other objects that don't contain scrollbars.
*Windows will redraw your window when navigating to another page or resizing your app. So use the commands again afterwards.
*Don't use VisualNeo Win built in borders on the same objects your using the plugin on. They won't render properly...
* This plugin was developed on Win 11 but should work on Win 10 too.Hope you find it useful,
CheersUPDATE! Fixed a couple of issues... See my reply below and download: Round Corners.V2.zip
Now you can apply rounded corners to your VisualNeo Win Buttons, Containers, Rectangles, and Simple Text Objects... You can also add colored rounded borders to objects in your apps too...
Command Examples:
GetObjectHandle "Container1" "[Con1Handle]" .first get the object handle into a variable...
uiRoundCornersSmooth "[Con1Handle]" "40" Sets the radius of Container1 to 40.
Add Borders:
uiRoundCornersWithBorder "[Con1Handle]" "20" "5" "0,0,0" .Parameters: "Object Handle" "Radius" "Border-Width" "RGB colors"
uiUndoRoundCorners "[Con1Handle]" will remove the rounded corner styles on an object.
The only limitation is you can't put an object with rounded borders over another object... It won't render properly. But there is a workaround, and I have included images below...

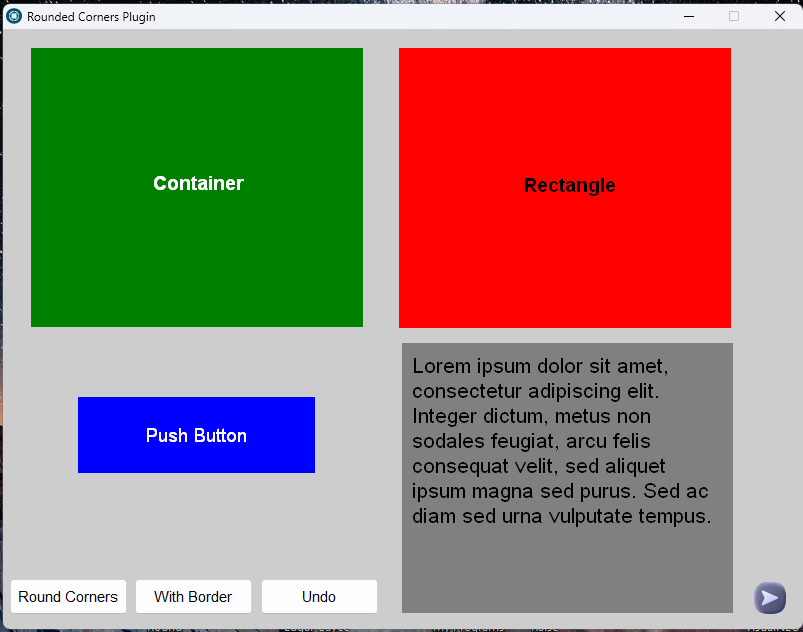

1st Image is the standard VisualNeo Win look. (Included just for comparisons...)

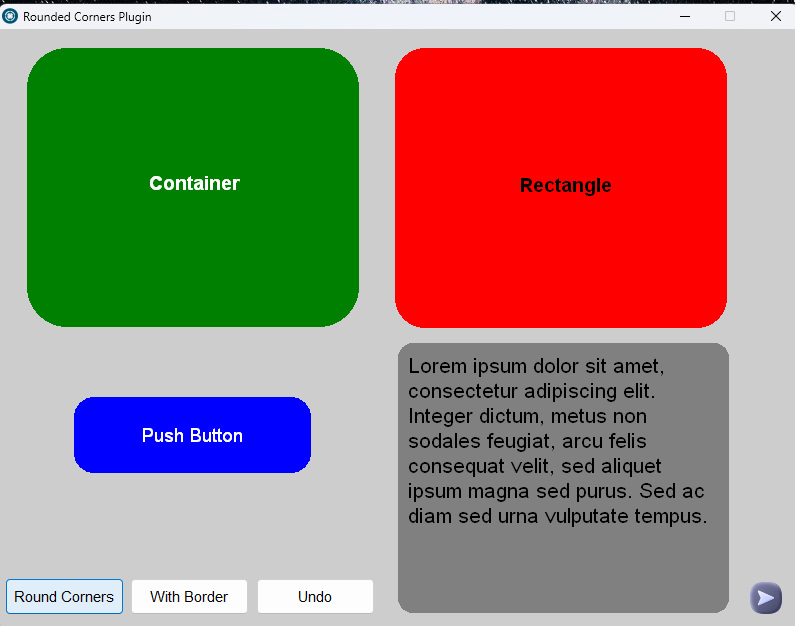

2nd image is rounded corners on objects with no border.

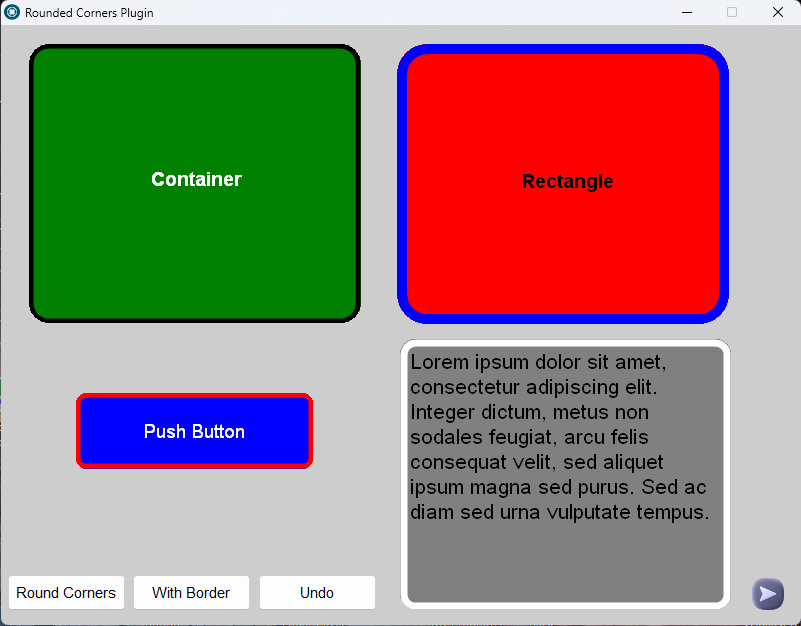

3rd image is rounded corners with colored borders.

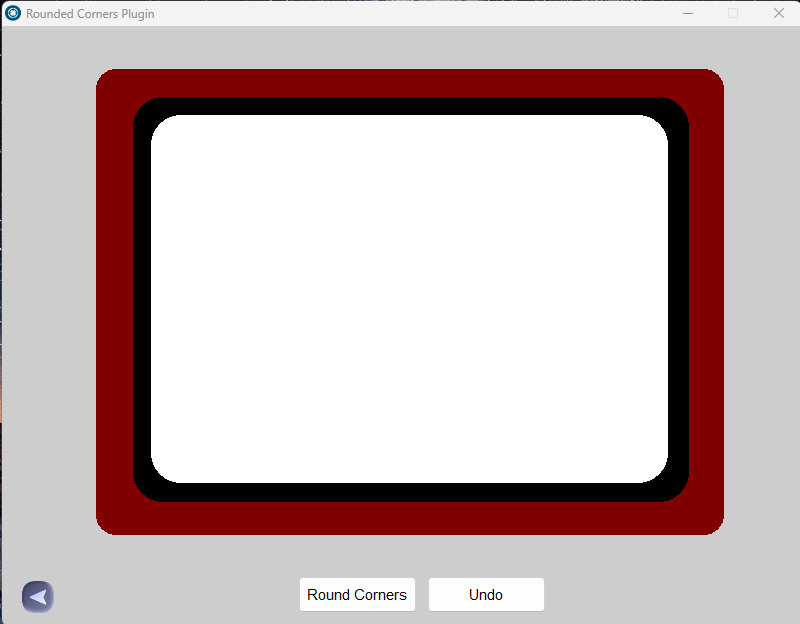

4th image is rounded corner objects (no borders) overlayed on top of each other to simulate a border. (Workaround)
*Note: I tried styling a Text Entry object but the scrollbars disappeared when Applying the rounded corner style.
*Try it on other objects that don't contain scrollbars.
*Windows will redraw your window when navigating to another page or resizing your app. So use the commands again afterwards.
*Don't use VisualNeo Win built in borders on the same objects your using the plugin on. They won't render properly...
* This plugin was developed on Win 11 but should work on Win 10 too.
Hope you find it useful,
Cheers
UPDATE! Fixed a couple of issues... See my reply below and download: Round Corners.V2.zip
Uploaded files:- You need to login to have access to uploads.
Quote from Anthony LaTorre on November 22, 2025, 2:35 pmJust a small fix for the plugin...
Fixed an issue with the Button Depress Effect wasn't working when borders were applied to the button...
Tweaked the rendering settings for a little better rendering of the comers and borders...
Just a small fix for the plugin...
Fixed an issue with the Button Depress Effect wasn't working when borders were applied to the button...
Tweaked the rendering settings for a little better rendering of the comers and borders...
- You need to login to have access to uploads.
Quote from alangonzalez91 on November 23, 2025, 10:08 amExcellent!!!
Excellent!!!
Uploaded files:- You need to login to have access to uploads.
Quote from Anthony LaTorre on November 23, 2025, 12:43 pmThank you... Or I should say: Claude AI thanks you... ☺️ lol...
Thank you... Or I should say: Claude AI thanks you... ☺️ lol...
Quote from alangonzalez91 on December 1, 2025, 12:03 pmHi Anthony, is it possible to add the shadow function in addition to rounded corners?
Hi Anthony, is it possible to add the shadow function in addition to rounded corners?
Quote from Anthony LaTorre on December 1, 2025, 1:04 pmI tried before but failed... It adds another layer of complexity. Right now, I used up a lot of my Claude AI tokens creating the StyledText plugin...In the meantime, you can put a light-gray rounded rectangle behind a button and simulate a faux shadow effect...
Of course if you're adventurous... You can buy PureBasic and get a Claude AI account or use my custom ChatGpt "Windows Plugin Helper" and give it a go yourself. You have the the source code...
I will see what I can do, this is a busy time of year..
I tried before but failed... It adds another layer of complexity. Right now, I used up a lot of my Claude AI tokens creating the StyledText plugin...In the meantime, you can put a light-gray rounded rectangle behind a button and simulate a faux shadow effect...
Of course if you're adventurous... You can buy PureBasic and get a Claude AI account or use my custom ChatGpt "Windows Plugin Helper" and give it a go yourself. You have the the source code...
I will see what I can do, this is a busy time of year..
Quote from joferar333 on December 2, 2025, 10:17 am@anthony-latorre Otro gran aporte!
Super facil y util!
Mil gracias
Saludos
@anthony-latorre Otro gran aporte!
Super facil y util!
Mil gracias
Saludos
Quote from alangonzalez91 on December 2, 2025, 4:49 pmHi Anthony, I'm extremely grateful for your contribution. Do you have a PayPal account where I could donate to help cover expenses?
Hi Anthony, I'm extremely grateful for your contribution. Do you have a PayPal account where I could donate to help cover expenses?
Quote from Anthony LaTorre on December 2, 2025, 5:23 pmThank you @alangonzalez91, I appreciate your kind offer... You can show your appreciation by creating a great looking application that your users will love...
I created these plugins for my own multimedia educational apps that I plan to roll out next year... I addressed some of my needs by creating the styling plugins like this one and the StyledText Editor to give the UI a more polished and professional look...
I also created the Window Resize Helper for creating great looking apps for any screen size... (something that was lacking in VisualNeo Win)
I'm more than happy to share them with the members of the VisualNeo community.
Thanks again for your offer...
Cheers
BTW... I did look into adding a shadow feature... but it was extremely complicated to implement.
Thank you @alangonzalez91, I appreciate your kind offer... You can show your appreciation by creating a great looking application that your users will love...
I created these plugins for my own multimedia educational apps that I plan to roll out next year... I addressed some of my needs by creating the styling plugins like this one and the StyledText Editor to give the UI a more polished and professional look...
I also created the Window Resize Helper for creating great looking apps for any screen size... (something that was lacking in VisualNeo Win)
I'm more than happy to share them with the members of the VisualNeo community.
Thanks again for your offer...
Cheers
BTW... I did look into adding a shadow feature... but it was extremely complicated to implement.
