Quote from luishp on February 5, 2022, 8:04 am

@sakismor when you create a new FabricJS object you can assign a name to it. Just use the name to include the object type. For example txt1, txt2, txt3...
I hope it helps.

Quote from luishp on February 5, 2022, 9:15 am

@sakismor sorry. It's better to use fabGetProperty. Use property name "type" to get the object type: text, circle, rect...
Regards.

Quote from sakismor on February 5, 2022, 9:26 am

Thank you. Yes it is good solution

Quote from sakismor on February 19, 2022, 9:19 pm

I have 2 questions for the fabricJS plugin.

1. Can I select exactly dimension like 1200X800 px for the canvas of the fabricJS?
2. How can I have a list of all the objects from a canvas with the right order from front to back?

Thank you for your time?

Quote from luishp on February 20, 2022, 1:02 pm

@sakismor

Can I select exactly dimension like 1200X800 px for the canvas of the fabricJS?

By default itt takes the Contaniner dimensions but you can try this (change "Container1" with your container name)

BeginJS
window["Canvas"+"Container1"].setDimensions({width:300, height:200});
EndJS

How can I have a list of all the objects from a canvas with the right order from front to back?

Try this to get an Array with all the objects information:

fabSaveAsJSON "Container1" [result]
ParseJSON "[result]" [result]
Consolelog [result.objects]

Take a look at the console to see all the properties you can get from each object. For example this code will get left position from first object:

SetVar [left] [result.objects(0).left]

Regards.



Quote from luishp on February 20, 2022, 1:07 pm

@sakismor please download and install the attached plugin update. It includes a new command: fabSetCanvasSize

Best regards.

Quote from sakismor on February 21, 2022, 9:05 am

I am really thank you!!!

I am really sorry for asking something new now but I start working with fabricjs and I have many questions.

1.  Can I change in an image object the photo? I need to have the same object and only to change the image.
2.  Can I disable the right click so nobody can download the images?
3.  In my example that I send you in the cropping post I have a center container and a second container inside that is for the fabricjs. I resize the canvas successful but I need to resize and the container so when I resize again to change and the container. So every time the container have the same dimension with the canvas. Is that possible?

A real example what I want to do you can see in this link https://www.corjl.com/d/4D5ON0   . So if you make it smaller the explorer you will se that the canvas change and get the new dimensions.

Best regards

Quote from luishp on February 21, 2022, 6:42 pm

Can I change in an image object the photo? I need to have the same object and only to change the image.

I don't think so, but you can check the original Fabricjs JavaScript library.

Can I disable the right click so nobody can download the images?

Take a look at this same question on Stack Overflow

In my example that I send you in the cropping post I have a center container and a second container inside that is for the fabricjs. I resize the canvas successful but I need to resize and the container so when I resize again to change and the container. So every time the container have the same dimension with the canvas. Is that possible?

I don't understand very well your question but I think you are probably asking for some kind of responsive design.

Regards.

Quote from sakismor on February 21, 2022, 11:05 pm

For change the image I found this.

https://stackoverflow.com/questions/15179976/how-to-change-the-image-of-the-fabric-image-object-attribute-src

But I really don't know how to do it.



Quote from sakismor on November 7, 2022, 7:12 pm

Hello again,

I come back to this forum to ask again if I can change the image that is load before to fabricjs. Please I need a solution to can finished my project.

And a new question about fabric. I have a canvas that is 2000 X 1200 px and when i download the image I take the image smaller 1000 X 600 px like the zoom that I make. Is the fabric save the image like a screenshot or can I have the real resolution of the canvas?

Please answer ASAP.

Best regards

Quote from luishp on November 8, 2022, 1:12 pm

@sakismor try this:

BeginJS
  var myimg=new Image();
  myimg.onload=function(){
    window["objectName"].setElement(myimg);
  }
  myimg.src="https://images.unsplash.com/reserve/bOvf94dPRxWu0u3QsPjF_tree.jpg?ixlib=rb-4.0.3&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&fit=crop&w=350&q=80";
EndJS

Just change "objectName" with the name of your previously created image object using FabricJS command FabLoadImage.

And a new question about fabric. I have a canvas that is 2000 X 1200 px and when i download the image I take the image smaller 1000 X 600 px like the zoom that I make. Is the fabric save the image like a screenshot or can I have the real resolution of the canvas?

Place the canvas inside a Container and apply the scale to the Container (using transform CSS property), not the canvas. You will get the full size.

Regards.

Quote from sakismor on November 8, 2022, 7:10 pm

I am really thank you for the solution. The only problem is that have to click the image to see the new one after I am running the javascript.

And about the transform CSS property is it possible ot have an example?

I really don't know how to do it.

Thank you

Quote from luishp on November 8, 2022, 8:21 pm

The only problem is that have to click the image to see the new one after I am running the javascript.

@sakismor just add this inside the funcion:

window["Canvas"+"Container1"].renderAll();

BeginJS
  var myimg=new Image();
  myimg.onload=function(){
    window["objectName"].setElement(myimg);
    window["Canvas"+"Container1"].renderAll();
  }
  myimg.src="https://images.unsplash.com/reserve/bOvf94dPRxWu0u3QsPjF_tree.jpg?ixlib=rb-4.0.3&ixid=MnwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&fit=crop&w=350&q=80";
EndJS

Change "Container1" with your Container name.

And about the transform CSS property is it possible ot have an example?

I have no time right now, sorry. Think about a Container inside another Container (the inner one will be scaled and contains the canvas) the outer one will have the scrollbars if necessary. This is from a real project I'm working on (ContainerFab is the inner Container):

CreateEmptyObject [myCSS]
SetVar [myCSS.transformOrigin] "top left"
SetVar [myCSS.transform] "scale([theScale])"
Math "[scale]*100" 0 [scalePercent]
SetObjectCSS "ContainerFab" [myCSS]
SetVar [scalePercent] [theScale]*100
Refresh

Regards.

Quote from sakismor on November 13, 2022, 9:20 am

Thank you for the solution. Delete this link.

I have new questions.

• How to set the zoom exactly to the canvas size?  So everytime the canvas size change to change and the zoom and the canvas fit to the rectangle.
• How is working the fabLoadMainImage? In the help file is says that is having 3 parameters. When I try to use it I see that is having only 2 parameters. Can I have and an examples how to load and image background that is in images folder?

Thank you

Quote from luishp on November 13, 2022, 2:13 pm

How to set the zoom exactly to the canvas size? So everytime the canvas size change to change and the zoom and the canvas fit to the rectangle.

@sakismor you will need to do some maths, as you need to apply the zoom as a scale percentage of your original Container size.

How is working the fabLoadMainImage?

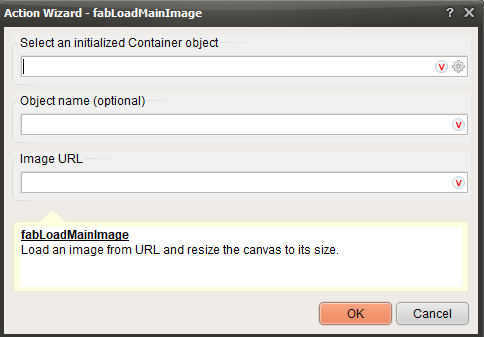

It has 3 parameters (see attached screenshot). This is a sample code:

fabInitialize "Container1"
SetVar [imgURL] "https://images.unsplash.com/photo-1659535844436-64344882b939?ixlib=rb-4.0.3&ixid=MnwxMjA3fDF8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8&auto=format&fit=crop&w=600&q=80"
fabLoadMainImage "Container1" "image1" "[imgURL]"

Regards.
