Help and guidance regarding the implementation and use of the organizational chart plugin

javadrajabihakami@javadrajabihakami
242 Posts
#1 · June 16, 2023, 4:16 pm

Hello and good time dear friends...!
Thank you for explaining to me in a simple and understandable way about the implementation and use of the organizational chart plugin, where should I place the required items in the project and container? thanks all

I don't understand where to place the required items in the project and container!

https://www.jqueryscript.net/chart-graph/Fully-Customizable-Organisational-Chart-Plugin-With-jQuery-OrgChart.html

Click for thumbs down.0Click for thumbs up.0
luishp@luishp
5,132 Posts
VisualNEO Staff
#2 · June 16, 2023, 6:15 pm

Hi @javadrajabihakami

I did a project for a company using that JavaScript plugin just a few months ago.
To make it easily updatable I used neoCMS for the back-end and it worked very well.

Check it here:
https://www.conberge.info/organigrama

All the data is retrieved from here:
https://www.conberge.info/organigrama/admin/api/collections/get/equipo/

First, load the JavaScript Libraries (Project > Properties > Advanced > Head):

<script src="https://d3js.org/d3.v7.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/d3-org-chart@2"></script>
<script src="https://cdn.jsdelivr.net/npm/d3-flextree@2.1.2/build/d3-flextree.js"></script>

This is the initialization JavaScript subroutine I used:

BeginJS
//var chart;
      d3.json(
        'https://www.conberge.info/organigrama/admin/api/collections/get/equipo/'
      ).then((theData) => {
        dataFlattened = new Object();
        dataFlattened = theData.entries;
        console.log(dataFlattened);

        $App.chart = new d3.OrgChart()
          .container('.chart-container')
          .data(dataFlattened)
          .rootMargin(100)
          .nodeWidth((d) => 210)
          .nodeHeight((d) => 180)
          .childrenMargin((d) => 130)
          .compactMarginBetween((d) => 85)
          .compactMarginPair((d) => 80)
          .linkUpdate(function (d, i, arr) {
            d3.select(this)
              .attr('stroke', (d) =>
                d.data._upToTheRootHighlighted ? '#0a355e' : '#0a355e'
              )
              .attr('stroke-width', (d) =>
                d.data._upToTheRootHighlighted ? 5 : 1.5
              )
              .attr('stroke-dasharray', '3,2');

            if (d.data._upToTheRootHighlighted) {
              d3.select(this).raise();
            }
          })
          .nodeContent(function (d, i, arr, state) {
            const colors = [
              '#ff5959',
              '#0a355e',
              '#0a355e',
              '#0a355e',
              '#0a355e',
              '#0a355e',
            ];
            const color = colors[d.depth % colors.length];
            const imageDim = 80;
            const lightCircleDim = 95;
            const outsideCircleDim = 110;


if(d.data.areaSpanish == undefined){
            return `
                <div style="background-color:white; position:absolute;width:${
                  d.width
                }px;height:${d.height}px;">
                   <div style="background-color:${color};position:absolute;margin-top:-${outsideCircleDim / 2}px;margin-left:${d.width / 2 - outsideCircleDim / 2}px;border-radius:100px;width:${outsideCircleDim}px;height:${outsideCircleDim}px;"></div>
                   <div style="background-color:#ffffff;position:absolute;margin-top:-${
                     lightCircleDim / 2
                   }px;margin-left:${d.width / 2 - lightCircleDim / 2}px;border-radius:100px;width:${lightCircleDim}px;height:${lightCircleDim}px;"></div>
                   <img src=" https://conberge.info/organigrama/admin/storage/uploads${
                     d.data.imageUrl.path
                   }" style="position:absolute;margin-top:-${imageDim / 2}px;margin-left:${d.width / 2 - imageDim / 2}px;border-radius:100px;width:${imageDim}px;height:${imageDim}px;" />
                   <div class="card" style="top:${
                     outsideCircleDim / 2 + 10
                   }px;position:absolute;height:30px;width:${d.width}px;background-color:#3AB6E3;">
                      <div style="font-family:arial;background-color:${color};height:auto;text-align:center;padding:5px;color:#ffffff;font-weight:bold;font-size:14px">
                          ${d.data.name}<br><small>${d.data.positionName}</small>
                      </div>
                      <div class="neo-middle-center-content" style="font-family:arial;background-color:#F0EDEF;height:65px;text-align:center;padding:5px;color:#0a355e;font-size:12px">
                          <i>${d.data.area}</i>
                      </div>
                   </div>
               </div>
  `;
}else{
           return `
                <div style="background-color:white; position:absolute;width:${
                  d.width
                }px;height:${d.height}px;">
                   <div style="background-color:${color};position:absolute;margin-top:-${outsideCircleDim / 2}px;margin-left:${d.width / 2 - outsideCircleDim / 2}px;border-radius:100px;width:${outsideCircleDim}px;height:${outsideCircleDim}px;"></div>
                   <div style="background-color:#ffffff;position:absolute;margin-top:-${
                     lightCircleDim / 2
                   }px;margin-left:${d.width / 2 - lightCircleDim / 2}px;border-radius:100px;width:${lightCircleDim}px;height:${lightCircleDim}px;"></div>
                   <img src=" https://conberge.info/organigrama/admin/storage/uploads${
                     d.data.imageUrl.path
                   }" style="position:absolute;margin-top:-${imageDim / 2}px;margin-left:${d.width / 2 - imageDim / 2}px;border-radius:100px;width:${imageDim}px;height:${imageDim}px;" />
                   <div class="card" style="top:${
                     outsideCircleDim / 2 + 10
                   }px;position:absolute;height:30px;width:${d.width}px;background-color:#3AB6E3;">
                      <div style="font-family:arial;background-color:${color};height:auto;text-align:center;padding:5px;color:#ffffff;font-weight:bold;font-size:14px">
                          ${d.data.name}<br><small>${d.data.positionName}</small>
                      </div>
                      <div class="neo-middle-center-content" style="font-family:arial;background-color:#F0EDEF;height:65px;text-align:center;padding:5px;color:#0a355e;font-size:12px">
                          <i>${d.data.area}<br>
                          ${d.data.areaSpanish}</i>
                      </div>
                   </div>
               </div>
  `;
}


          })
          .render();
      });
EndJS

Just add the chart-container CSS class to the Container you want to use to render the Org Chart and it should work.

Good luck!





Click for thumbs down.0Click for thumbs up.2
javadrajabihakami and smartmedia have reacted to this post.
javadrajabihakamismartmedia
luishp@luishp
5,132 Posts
VisualNEO Staff
#3 · June 16, 2023, 6:17 pm

Also note how I used neoMenu for the context menu (right click menu) :)

Click for thumbs down.0Click for thumbs up.1
javadrajabihakami has reacted to this post.
javadrajabihakami
javadrajabihakami@javadrajabihakami
242 Posts
Topic Author
#4 · June 16, 2023, 7:01 pm

Wow! This is very, very good! Being your friend and student! It is a matter of pride for us! Does this chart have the ability to receive its data from the table? Thanks dear friend

Click for thumbs down.0Click for thumbs up.0
javadrajabihakami@javadrajabihakami
242 Posts
Topic Author
#5 · June 16, 2023, 8:49 pm

Please explain more about the format of the address that calls the data! What is there in the desired address! I mean, what file should exist in this address?
And the second thing is: right click that opens and closes the chart! What commands are there?
Thanks

Uploaded files:
  • You need to login to have access to uploads.
Click for thumbs down.0Click for thumbs up.0
luishp@luishp
5,132 Posts
VisualNEO Staff
#6 · June 17, 2023, 7:52 am

@javadrajabihakami I'm using neoCMS to store and manage the data!

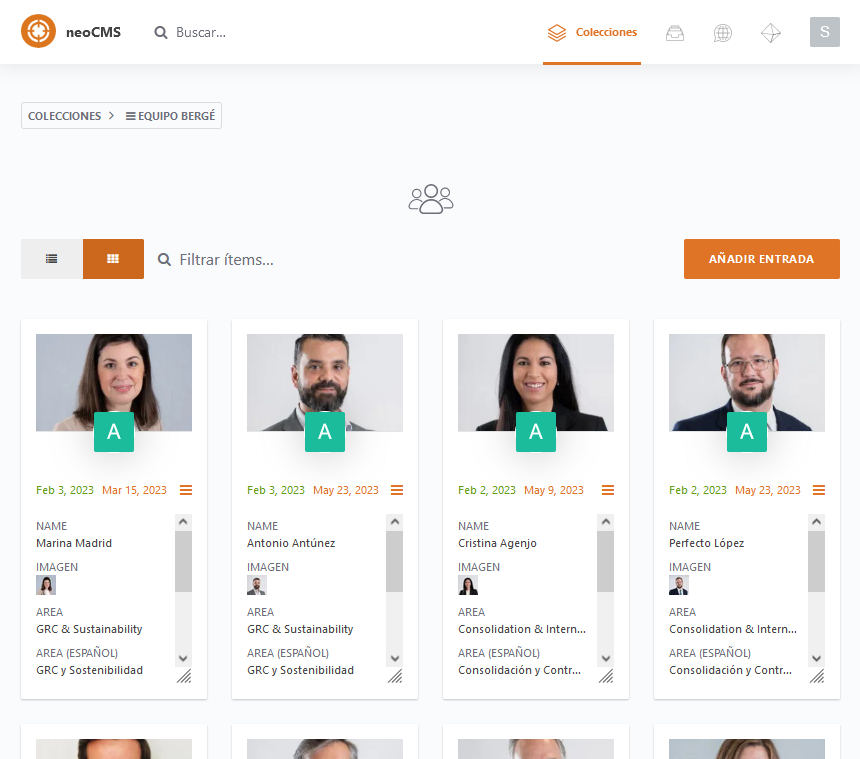

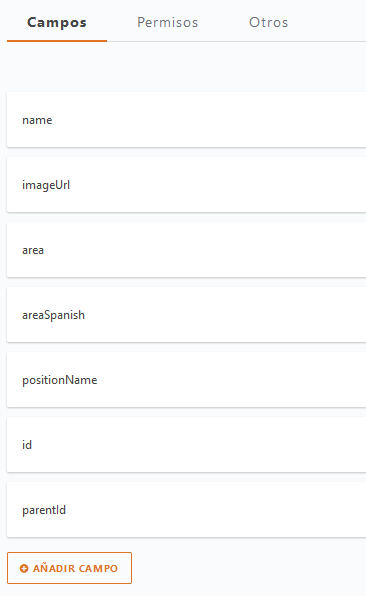

It makes really easy to update the data and include new profiles for my customers (check the attached pictures with data fields and backend)

"Expand All" command:

BeginJS
$App.chart.expandAll();
EndJS

"Contract All" command:

BeginJS
$App.chart.collapseAll();
EndJS

Check the plugin documentation to understand how it works :)
