PWA Scope

#1 · January 5, 2022, 7:11 pm

When our pwa doesn't reside in the root domain, we have to manually edit the 'manifest.webmanifest' file and change the scope to "scope": "/directory/".

While it's not that laborious, it would be nice if we could do this from within the program itself.

Just an idea.

#2 · January 5, 2022, 8:21 pm

@eduardovolpi yes, you are right. I've been thinking about this but not sure about how to implement it regarding user interface.
Perhaps adding a new text field "Scope directory (left empty for root)"?

Thank you!

Vadim and EduardoVolpi have reacted to this post.

#3 · January 5, 2022, 10:53 pm

Yes @luishp , I think it's the best way, the default is root, you don't need to fill anything, and if the installation is in a directory then the person fills it with "/directory name/"

luishp has reacted to this post.

#4 · January 6, 2022, 6:32 pm

@eduardovolpi done! :)

EduardoVolpi has reacted to this post.

#5 · January 6, 2022, 7:04 pm

Hi @luishp,

I don't really understand the purpose of this change, because until now I was using "https://www.myDomain.fr/my folder" to host my PWA and it works without any problem....
Maybe there is a trick I don't understand well...

Regards,

#6 · January 6, 2022, 7:55 pm

Hi @luishp

Thank you. It's much easier now! :-)

Hi @cdy44-2

Your pwa, installed in a subdirectory behaves like a pwa or a common webpage?

Take a look at some more info in this site:

https://developer.mozilla.org/en-US/docs/Web/Manifest/scope

#7 · January 6, 2022, 7:59 pm

@cdy44-2 if the scope is not correctly set, your PWA will not be installable from the Web Browsers.
And that's one of the main benefits of PWA's.

Regards.

#8 · January 6, 2022, 8:21 pm

Hi @luishp and @eduardovolpi

Take a look at this : I have made a PWA on my Iphone and an ANDROID phone without problem...
I mean it is installed on my screen as an app.

https://www.media44.fr/wopagen/

#9 · January 6, 2022, 8:26 pm

...or maybe you means on Web Browser on PC...not on phone or tablet...

#10 · January 6, 2022, 8:33 pm

@cdy44-2 I think you are missing something really important about PWA's.
They don't need to be compiled into an .apk to install them. They can be installed right from the Web Browser.

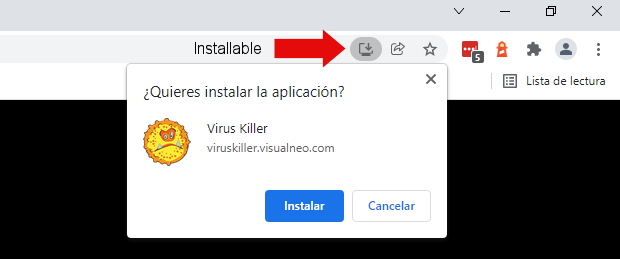

Your App is not installable because the scope is not correctly defined. Take a look at the attached pictures.
This is valid for Desktop, Tablets and Mobiles.

Regards.

Uploaded files:

You need to login to have access to uploads.

#11 · January 6, 2022, 8:54 pm

It is absolutely not an *.apk !

When I say "installed" I mean that the Web Browser offers me to create an icon on the main screen, like it does for an other app but in fact it is a web site in the folder "wopagen".

It works on my iPhone, my iPad and also on my ANDROID phone

May be I am wrong somewhere... ;)

#12 · January 6, 2022, 8:55 pm

...But may be not on a PC or a MAC...

#13 · January 6, 2022, 8:56 pm

Oups ! I think that my tired mind understand....sorry !!!!

#14 · January 6, 2022, 9:27 pm

I have made the update, compile as a PWA with "/wopagen2" in scope directory, copied all files in :

https://www.media44.fr/wopagen2

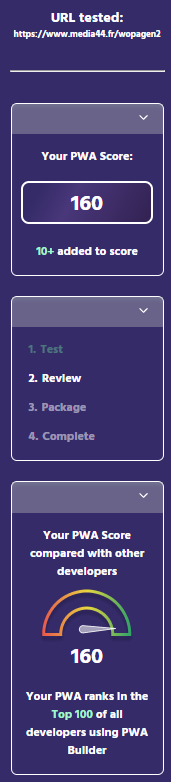

I have a score of 160 in PWA Builder of 160, but when I launch the Web Browser at : https://www.media44.fr/wopagen2

I don't have the possibility to install it (on my PC)...

Uploaded files:

You need to login to have access to uploads.

#15 · January 6, 2022, 9:39 pm

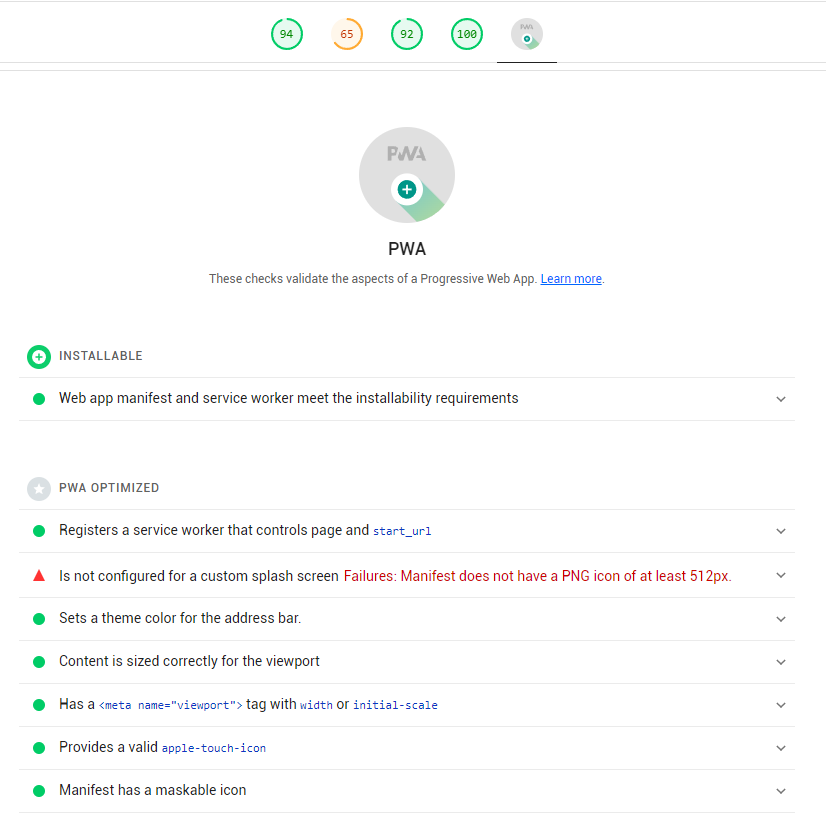

@cdy44-2 pwabuilder.com is fine to pack your webapp into an .apk but use Google Lighthouse to be sure your app is installable.
Take a look at your manifest file:

{
"name": "MyPassGenerator",
"scope": "/wopagen2",
"start_url": "index.html",
"theme_color": "#000000",
"background_color": "#000000",
"short_name": "MyPass",
"description": "Génération de mots de passe",
"author": "Denis COUDROY",
"lang": "en",
"version": "1.1",
"display": "fullscreen",
"orientation": "portrait",
"icons": [{
"src": "img/Apps-File-Encrypted-icon.png",
"sizes": "128x128",
"purpose": "any maskable"
}]
}

Your icon size is too small. It should be at least 512 x 512 px.

Regards.

Uploaded files:

You need to login to have access to uploads.

Vadim and CDY@44 have reacted to this post.

#16 · January 6, 2022, 9:51 pm

Thank you @luishp !

#17 · January 6, 2022, 10:32 pm

Quote from CDY@44 on January 6, 2022, 9:27 pm

I have made the update, compile as a PWA with "/wopagen2" in scope directory, copied all files in :

https://www.media44.fr/wopagen2

I have a score of 160 in PWA Builder of 160, but when I launch the Web Browser at : https://www.media44.fr/wopagen2

I don't have the possibility to install it (on my PC)...

@cdy44-2

You are still missing the last "/" in your scope. It should be "/wopagen2/"

Do that, use the correct icon size (minimum 512x512) and everything will work properly.

Vadim has reacted to this post.

#18 · January 6, 2022, 10:48 pm

Thank you so much @eduardovolpi and @luishp

I feel really stupid for making so many mistakes....

Best regards,

#19 · January 6, 2022, 10:59 pm

You're welcome @cdy44-2, nobody knows everything and that's what this community exists for.

luishp and Vadim have reacted to this post.
