Transparent element on the window.
Quote from PGSuni on October 26, 2021, 8:59 pmHello!
How can a transparent element be placed on the surface of the window?
Rectangle with container elements and transparent PNG failed.
Only at the settings of the JPG image indicated by the arrow by setting the OPACITY value.But it would be nice to avoid using an image editor.
Is there a basic solution for it maybe?I attach a picture of what I mean.
Thanks in advance for your reply.
Hello!
How can a transparent element be placed on the surface of the window?
Rectangle with container elements and transparent PNG failed.
Only at the settings of the JPG image indicated by the arrow by setting the OPACITY value.
But it would be nice to avoid using an image editor.
Is there a basic solution for it maybe?

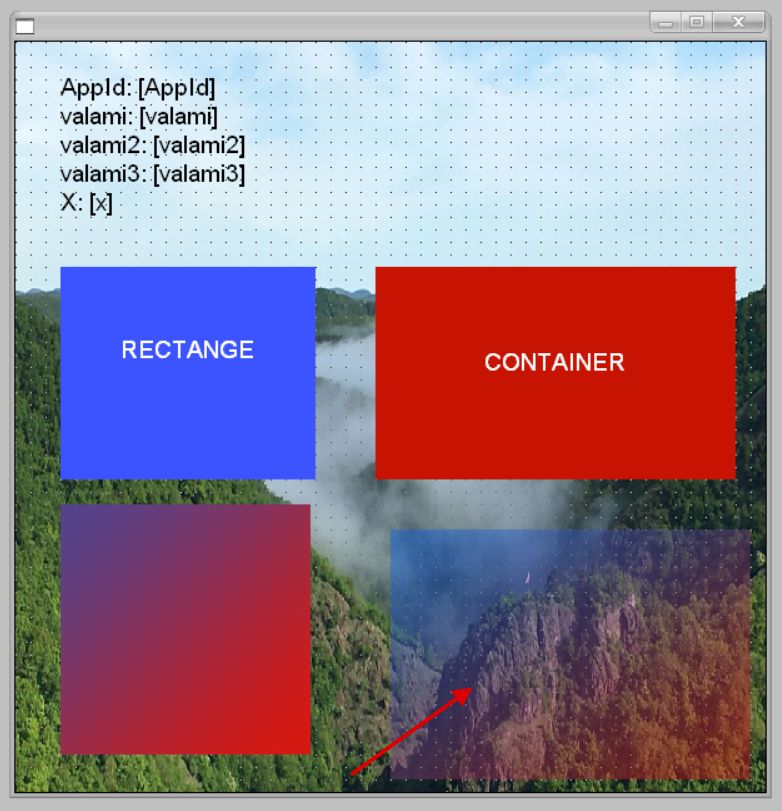

I attach a picture of what I mean.
Thanks in advance for your reply.
Uploaded files:- You need to login to have access to uploads.
Quote from Vadim on October 26, 2021, 9:20 pm@pgsuni
Take a look at the sample. The desired level of transparency is created for a child window that is made without a frame and can contain other elements (for example, the picture inside it will also become transparent).
I used the zmFunctions 1.0b plugin (Peter Pavlov) to get the desktop coordinates. The English version of the plugin is available here:
Take a look at the sample. The desired level of transparency is created for a child window that is made without a frame and can contain other elements (for example, the picture inside it will also become transparent).
I used the zmFunctions 1.0b plugin (Peter Pavlov) to get the desktop coordinates. The English version of the plugin is available here:
Uploaded files:- You need to login to have access to uploads.
Quote from PGSuni on October 26, 2021, 10:11 pmI wasn’t thinking about the transparency of an entire window right now.
Although this was also a question for me, so I greeted this in advance :-)
I tried it, it works, very good.For a VisualNeo graphic in a window, I would look for some transparency.
I wasn’t thinking about the transparency of an entire window right now.
Although this was also a question for me, so I greeted this in advance :-)
I tried it, it works, very good.
For a VisualNeo graphic in a window, I would look for some transparency.
Quote from Vadim on October 27, 2021, 8:08 am@pgsuni
You can place any object (such as a drawing or an input box) in the CustomWindow by aligning them in size. In this way, you can make any object transparent to the desired degree. In the attached demo file, I show you an example of a semi-transparent input field. For clarity, try inserting any of your own background images instead of the gradient fill in the page properties.
You can also create the main program window of any shape (by mask), with transparent areas (for example, with holes), or with a given color of transparency, or make it completely transparent (by setting the level of transparency).
You can search for available VisualNEO Win commands and plugins simply by meaning in my database. For example, by part of the word "transparent".
The English version is available at this link (you will need to register on my site and click the "enroll in course" button, because I have to keep track of my students' activity):
https://distant.orgpsiholog.ru/mod/data/view.php?id=405
You can place any object (such as a drawing or an input box) in the CustomWindow by aligning them in size. In this way, you can make any object transparent to the desired degree. In the attached demo file, I show you an example of a semi-transparent input field. For clarity, try inserting any of your own background images instead of the gradient fill in the page properties.
You can also create the main program window of any shape (by mask), with transparent areas (for example, with holes), or with a given color of transparency, or make it completely transparent (by setting the level of transparency).
You can search for available VisualNEO Win commands and plugins simply by meaning in my database. For example, by part of the word "transparent".
The English version is available at this link (you will need to register on my site and click the "enroll in course" button, because I have to keep track of my students' activity):
https://distant.orgpsiholog.ru/mod/data/view.php?id=405
