VisualNEO Win - Small Improvements

Page 1 of 2Next

Hi there,

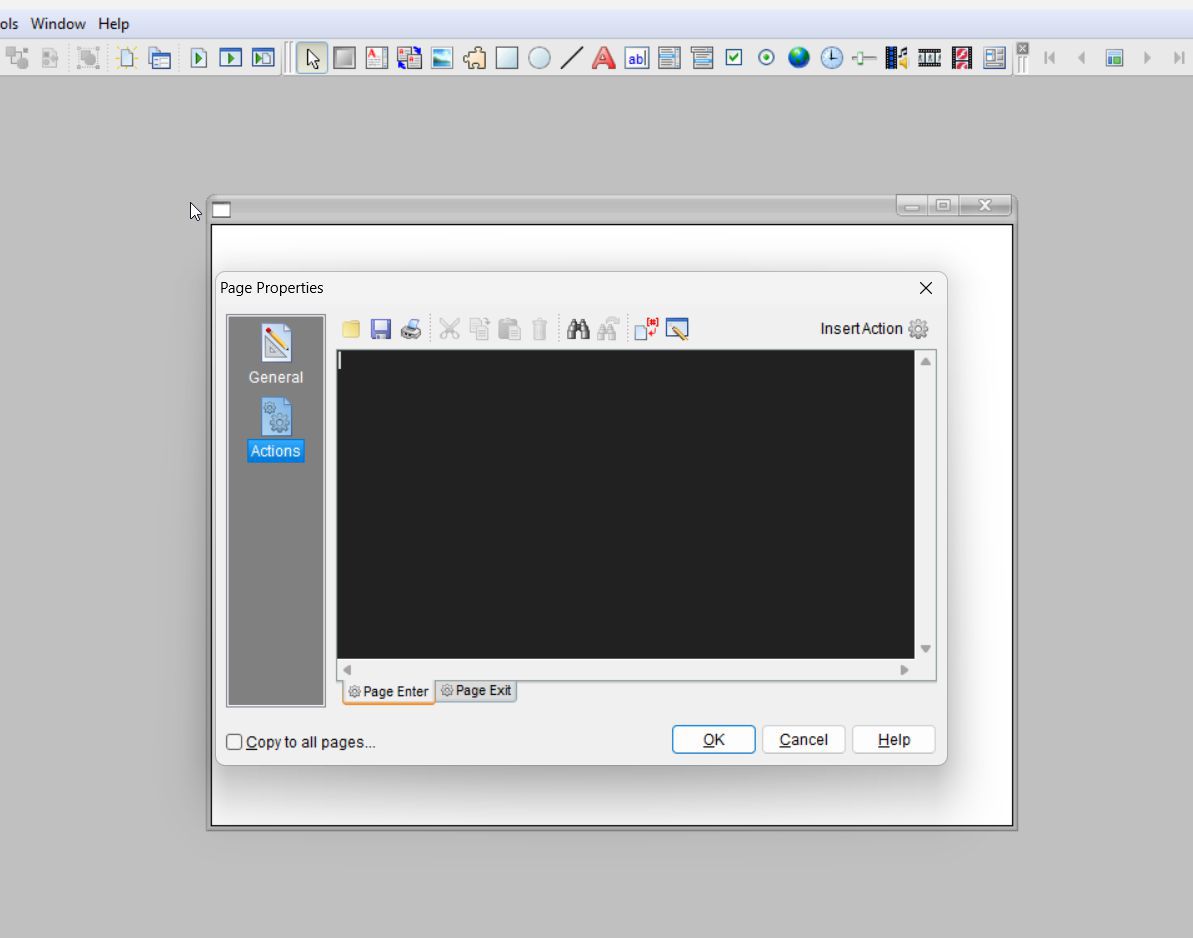

hmmm look at uploaded picture, I wonder if we can resize this dialog or give maximize button for it and save it's size... (I know there is a fullscreen editor button which opens another window with exactly what i need)

I know it's not important but even with such small changes we can make VisualNEO Win better. this is just a suggestion...
There are a lot more, for example a dark theme could be awesome!



Uploaded files:
  • You need to login to have access to uploads.

@noyzen

These are good suggestions. The code editor window is indeed small now (although it was once a normal size, on older monitors). But since these suggestions don't fundamentally change anything, there's no point in diverting Luis's or Hans-Peter's resources to these changes. My thinking.

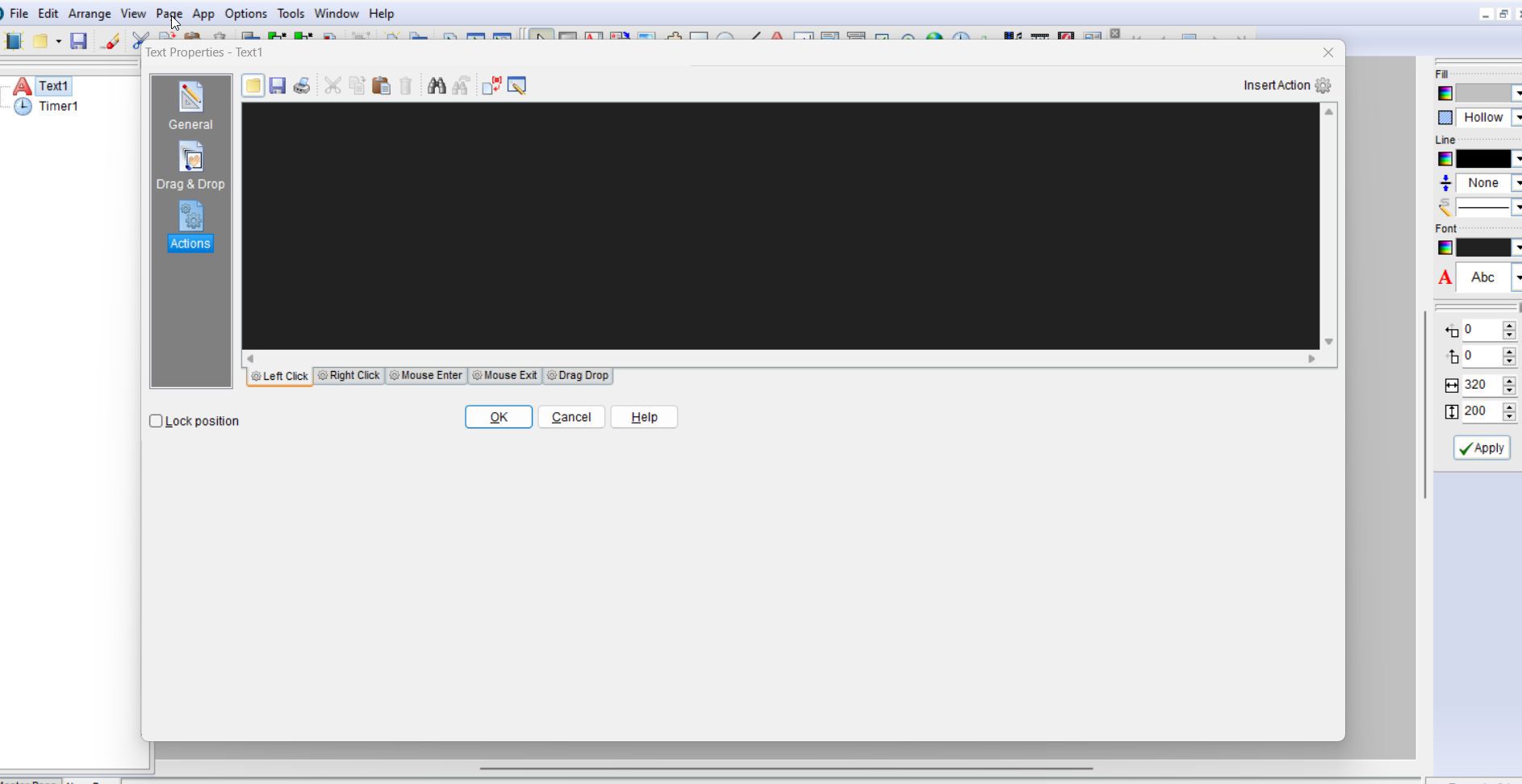

That's right @vadim but it bother me so much so I made an app to monitor and detect that window and resize it LOL!

But I failed because it's not good to just resize window by force...
as you can see here:



Uploaded files:
  • You need to login to have access to uploads.
Vadim has reacted to this post.
Vadim

@noyzen

Oh, cool! I think either way you enjoyed the experiment! )

noyzen has reacted to this post.
noyzen

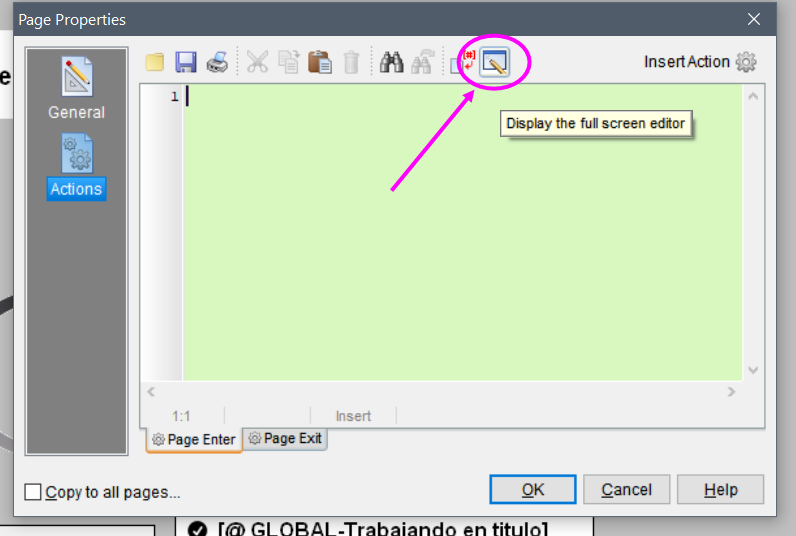

Why don't you use the tool included in the toolbar to enlarge the window?

Uploaded files:
  • You need to login to have access to uploads.

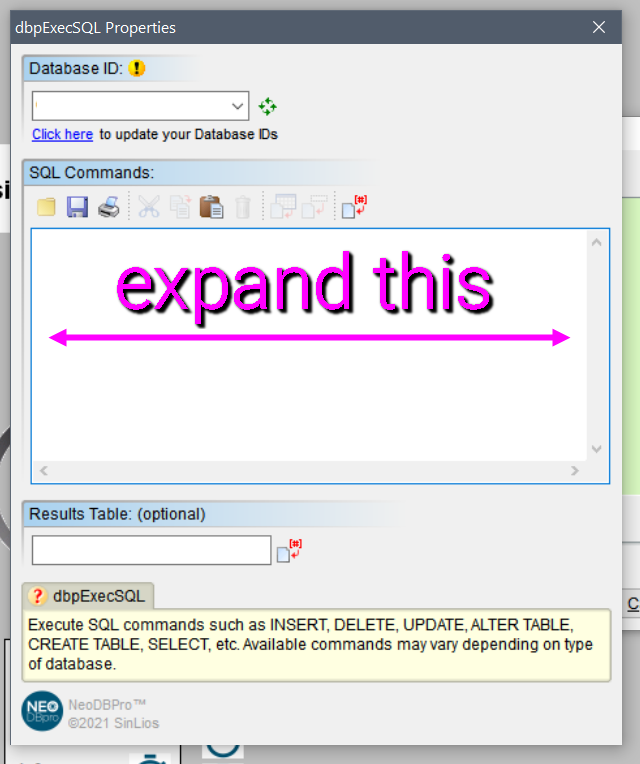

However, it is urgent to expand the coding window of the SQL editor, since it really does not have any method to resize it.

Uploaded files:
  • You need to login to have access to uploads.
Quote from alangonzalez91 on May 28, 2024, 2:40 pm

However, it is urgent to expand the coding window of the SQL editor, since it really does not have any method to resize it.

As I said, I know about that and I use that.

but that an extra Click, It's a lot faster to code in first window if that one was resizable...

alangonzalez91 has reacted to this post.
alangonzalez91

Sorry, I hadn't read correctly.

@noyzen

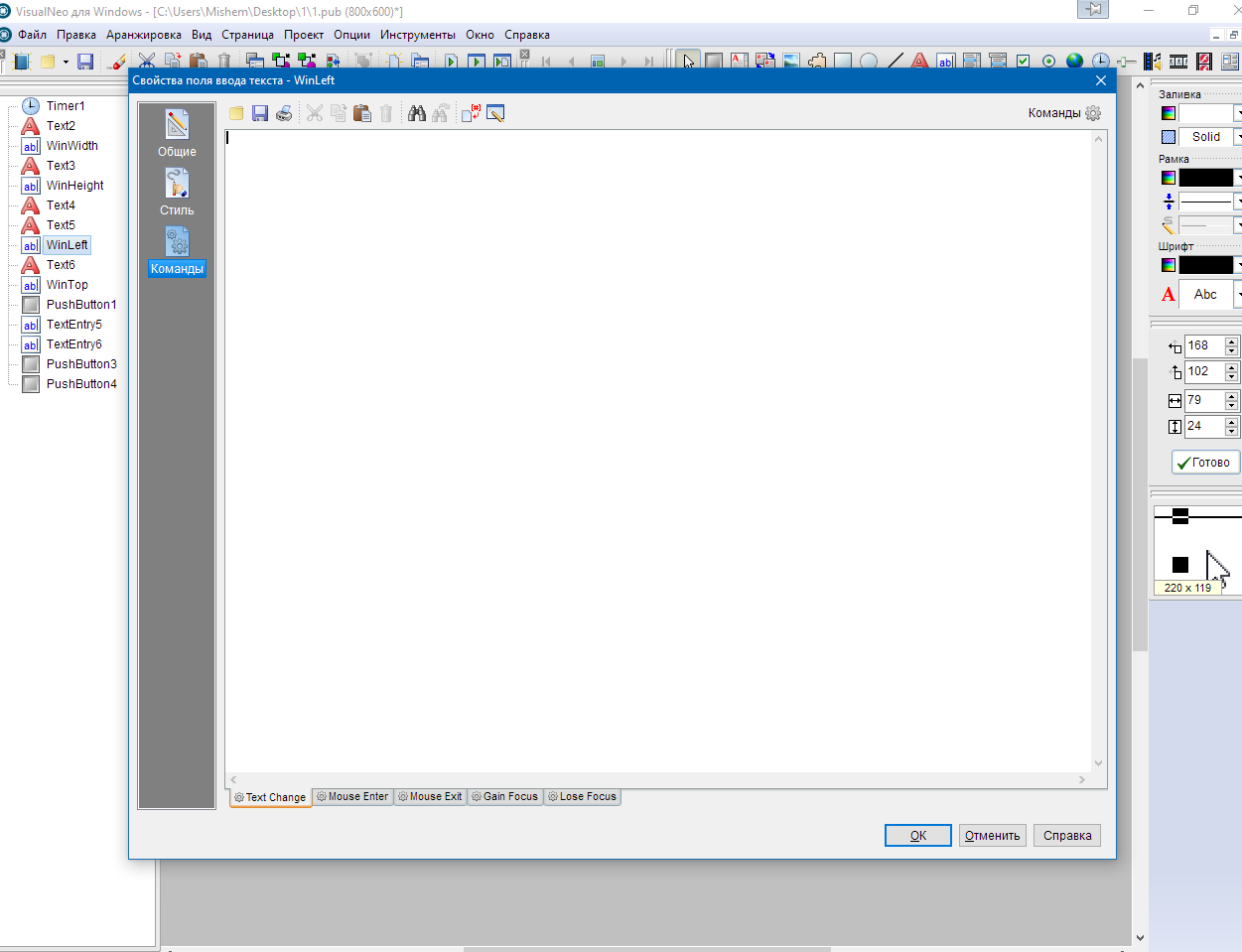

Do you want something like this?

This can be done using the rlFunctions plugin.

Or using the cmdow program.

https://github.com/ritchielawrence/cmdow

But antiviruses do not like this program.

Uploaded files:
  • You need to login to have access to uploads.
Vadim and noyzen have reacted to this post.
Vadimnoyzen

There is one more problem. When you move the Lock position, its width and height automatically become 0. i.e. Lock position is no longer displayed. If this is not critical for you, then you can try to implement it.

noyzen has reacted to this post.
noyzen

ohh looks cool!

what you used to do this? rlfunctions plugin or the other tool from github?

I tried different ones. Both are working options. Both can be used. To make some tasks easier I used zmFunctions. For example, searching for a window by part of its title. Just enter Properties and it will find all windows regardless of the length of the title. But zmFunctions cannot resize child windows, rlFunctions and cmdow handled this. cmdow can display handles and sizes of all windows including hidden ones. But cmdow displays the window handle in hexadecimal mode, and plugins work with decimal value. Therefore, either write your own function, or use a plugin to convert the descriptor value. Try it. You'll gradually figure it out. :) The main thing is that it can be implemented. If only for yourself, then you can use some resource editor, for example Radialix, Sisulizer, etc. resize windows and use. ;) Go for it. All in your hands. :)

LoL!
Look at this:
http://www.digitallis.co.uk/pc/ResizeEnable/

This tool is awesome, it make any window resiable and it will auto adjust element inside it!!!!

Woha, cool... they only problem is that it cant save the resized window and every time yo have to resize it again :/

@noyzen

The fix position checkbox does not work.

Uploaded files:
  • You need to login to have access to uploads.
noyzen has reacted to this post.
noyzen

The antivirus may swear because it is accessing windows. I don't swear. The project was not published. There are 4 plugins, a lot of links to provide. Some are in Russian, some have no documentation. If you want to finalize something yourself, I can send you the project. The program is in the system tray. By default I made the window 800 by 600, you can set your sizes, but every time. I didn't remember the settings. Laziness. :) You'll figure it out.

Although... Below is the project. Plugins are copied to the Temp folder when the application is launched. You can get it from there, rename it, install it, and you’ll be happy.

Plugins

alStartup
zmFunctions
zmBullshit
rlFunctions

Uploaded files:
  • You need to login to have access to uploads.
Vadim and noyzen have reacted to this post.
Vadimnoyzen

Thanks @mishem nothing important, but now that you give files and I will be happy to try them tomorrow!

good job :)

Hi @mishem

Life is easier now with that damn tiny tool, it works perfectly for me!
Source is hard I don't know about "Regex" and how you managed to resize child elements!

But it's working and I have something new to learn :p



@noyzen

Just replace the code between Loop and EndLoop with this one. I later saw that the Action button is not displayed with the theme code.

Loop "1" "[ListWinNum]" "[i]"
    StrRegexList "(?i)TNeoBookBitBtn|TNeoBookIconBar" "[ListWin[i]]" "" "[NameOb]"
    StrRegexList "\d{4,}" "[ListWin[i]]" "" "[HWND_Ob]"

    If "[NameOb]" "=" "TNeoBookIconBar"
        .Изменить размер TNeoBookIconBar
        zmGetWindowRectangle "[HWND_Ob]" "[HWND_ObLeft]" "[HWND_ObTop]" "[HWND_ObWidth]" "[HWND_ObHeight]" ""

.        SetVar "[Width]" "[HWND_ObWidth]+([WinWidth]-[HWNDWidth])"
        SetVar "[Height]" "[HWND_ObHeight]+([WinHeight]-[HWNDHeight])"

        rlSetWindowPosition "[HWND_Ob]" "NOTOPMOST" "0" "0" "" "[Height]" ""
    EndIf

    If "[NameOb]" "=" "TNeoBookBitBtn"
        .Изменить размер кнопок ОК, Отменить и Справка
        zmGetWindowRectangle "[HWND_Ob]" "[HWND_ObLeft]" "[HWND_ObTop]" "[HWND_ObWidth]" "[HWND_ObHeight]" "ClientSize"
        SetVar "[Left]" "[HWND_ObLeft]+([WinWidth]-[HWNDWidth])-8"
        SetVar "[Top]" "[HWND_ObTop]+([WinHeight]-[HWNDHeight]-[HWND_ObHeight])-8"

        rlSetWindowPosition "[HWND_Ob]" "NOTOPMOST" "[Left]" "[Top]" "[HWND_ObWidth]" "[HWND_ObHeight]" ""
    EndIf

EndLoop

Or comment out the line

SetVar "[Width]" "[HWND_ObWidth]+([WinWidth]-[HWNDWidth])"



This code changes the position of the buttons.

If "[NameOb]" "=" "TNeoBookBitBtn" .Изменить размер кнопок ОК, Отменить и Справка zmGetWindowRectangle "[HWND_Ob]" "[HWND_ObLeft]" "[HWND_ObTop]" "[HWND_ObWidth]" "[HWND_ObHeight]" "ClientSize" SetVar "[Left]" "[HWND_ObLeft]+([WinWidth]-[HWNDWidth])-8" SetVar "[Top]" "[HWND_ObTop]+([WinHeight]-[HWNDHeight]-[HWND_ObHeight])-8" rlSetWindowPosition "[HWND_Ob]" "NOTOPMOST" "[Left]" "[Top]" "[HWND_ObWidth]" "[HWND_ObHeight]" "" EndIf

This changes the height of the container in which the editor is located.

If "[NameOb]" "=" "TNeoBookIconBar" .Изменить размер TNeoBookIconBar zmGetWindowRectangle "[HWND_Ob]" "[HWND_ObLeft]" "[HWND_ObTop]" "[HWND_ObWidth]" "[HWND_ObHeight]" "" . SetVar "[Width]" "[HWND_ObWidth]+([WinWidth]-[HWNDWidth])" SetVar "[Height]" "[HWND_ObHeight]+([WinHeight]-[HWNDHeight])" rlSetWindowPosition "[HWND_Ob]" "NOTOPMOST" "0" "0" "" "[Height]" "" EndIf

Anything above simply determines which window is currently on top.

There's a lot that still needs to be improved. I just quickly threw it in and tested it separately.

Vadim and danito have reacted to this post.
Vadimdanito

Thanks @mishem, I will check this one too.

But today I made my resizer for my needs... Its simpler, and can resize some small editbox also! (ex: for paragraph text object it have a small editor which is anoying).

It also lunch VisualNEO and exit when VisualNEO close :)

I used WinSpy++ a tiny microsoft tool to find handles and resize objects.

Actions button is easy to fix, problem is "Lock position" checkbox which is wired and there is no way to fix it when its gone...

So in my app, i can right click on objects to use default layout with "Lock position" avaliable, or double click on them to use scaled properties dialog layout!

luishp has reacted to this post.
luishp
