Scrolling container in Neo Win..

Page 1 of 2Next

Hello Everyone...

Having a Bash at Neo Win with Full DB Pro .. and need to use a Container because 30 fields need to scroll with only 10 visible etc...

there is no way I can do this.. it does not scroll to show hidden fields ..

I am sure there is a way... and I am also sure someone will tell me...

Thanks

Lyn...



Uploaded files:
  • You need to login to have access to uploads.

Hi @linda-rainey have you try with container properties :  style/overflow-y = scroll ?

Hello Phil..

No... I presumed the box would auto scroll all by itself with any overflow... But!... I shall try that now...

No!.. it does not work with... style/overflow-y = scroll.. and where do you get this line from as I have been all through looking and can't find it...

Or how do you actually get the code and from what...

Lyn...

@linda-rainey

Sorry Lynda my answer was about neo web and not neo win. Really I do not know if it is possible with neo win.

Hello Phil...

I know it does it auto in Neo Web because I have made over 50 apps and all work fine...

I don't know why there is no "Scroll Box" or Container in tools that auto scrolls any thing hidden in overspill ...

So the Job stops and my apps for Windows can't be made...

Lyn...

@linda-rainey

The only way I know of to do that is to use a mouse plugin that would move the mouse to the control and then initiate a scrolling mouse function.  This work fine but if the user were to move the mouse during that time, it would interfere, not likely because it happens so fast but it could happen.

I don't know if there is a plugin currently that does this, maybe someone has made a mouse plugin with scrolling ability and can help?

My example below uses a plugin I've been designing for a couple months called ezAutomation but I've not finished it  The plugin was started because I was working with a customer that needed help and has some health challenges to overcome, so he uses automation tools like voice commands and such.  Anyways, here is an example of the scrolling action that it can can do in VisualNEOWin.  The action scrolls the mouse by adjustable mouse steps but first moves the mouse to the desired location, example below.

ezMouseScrollWheel "Down" "4" AND ezMouseScrollWheel "Up" "4"



ezAutomation Plugin Scoll Mouse Demo

I know it's not the exactly what you need and I've only tested with a vertical scroll, not a horizontal, but it might work.  But If the content is not visible, ex hidden or the current scrollbar does not work, this would not help  If you cannot find anything to do something like this, let me know and I'll see what I can do to help your project.

thanks!



Linda Rainey has reacted to this post.
Linda Rainey

@linda-rainey
I may have misunderstood what you were saying, if you meant there is no scrollbar in the container to use.

I saw this post on the old NeoBook forums, maybe it will help?
https://www.archive.visualneo.com/viewtopic.php?t=20068&hilit=scrolling+container

@linda-rainey please note that you can use VisualNEO Web to create Desktop applications too:

Many options! :)

Vadim and Linda Rainey have reacted to this post.
VadimLinda Rainey

Firstly... Hello Darb...

Looked at you replies and None will work in my systems for Windows Pc Databased Apps... as in Pics Below...

Thank you for trying to sort it....

Lyn...

Secondly... Hello Luis...

I know I can make these in Neo web... Pwa  (which is my preferred way) and scroll box works fine for adding as many fields as you want...

but that means I have to make them and sell them on my Servers... I don't want that.. I just like the ones I already have made since 2001 for Windows Systems with a standard Setup.exe or Msi.. installer.. so I don't have to get involved ....

The Canal3000 is just one of many which is very popular with the Boating Scene here in UK and EU which I sell ...

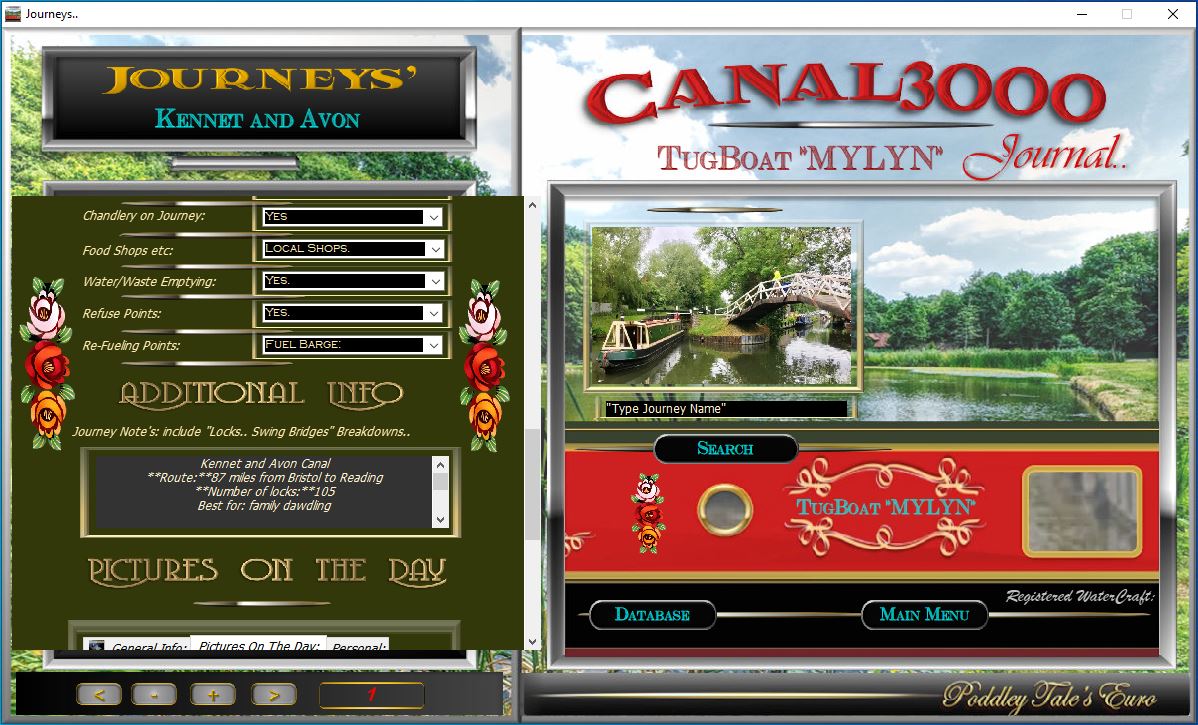

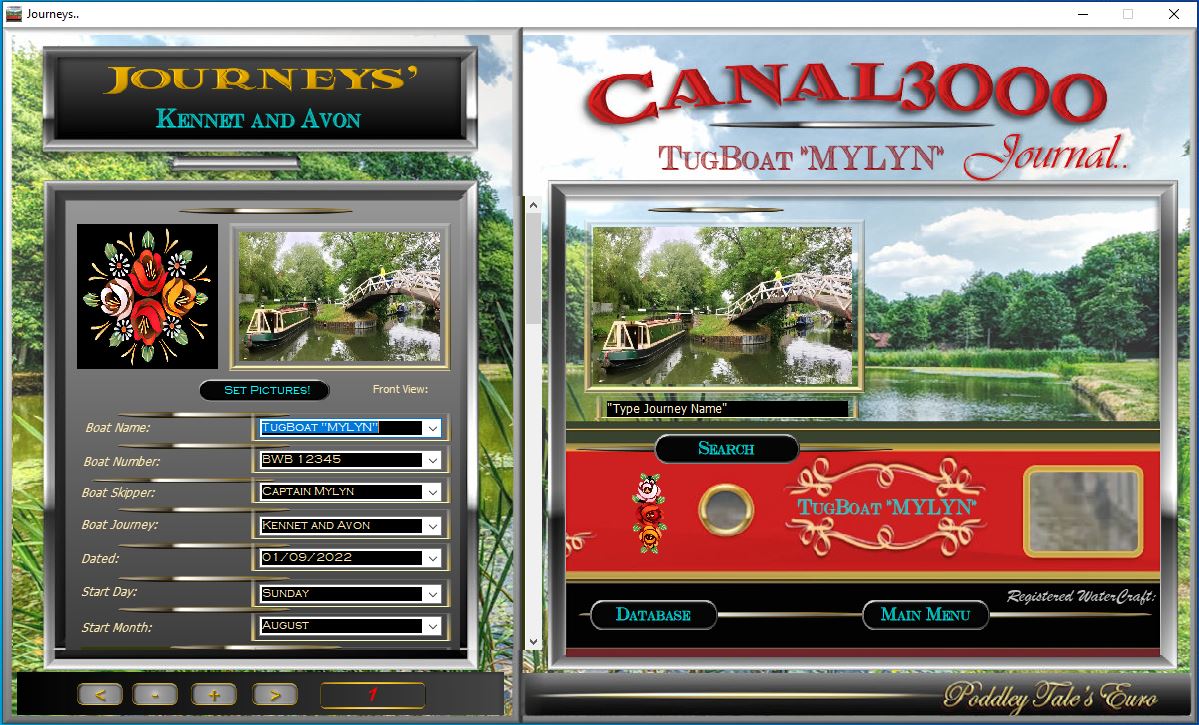

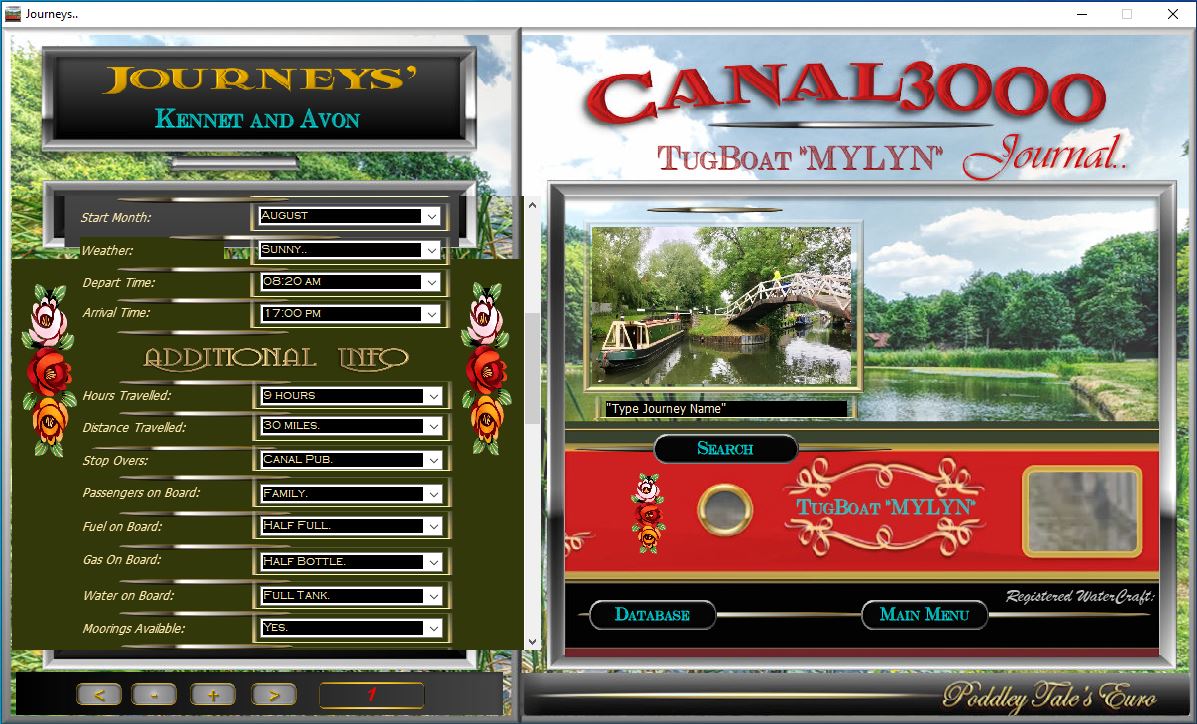

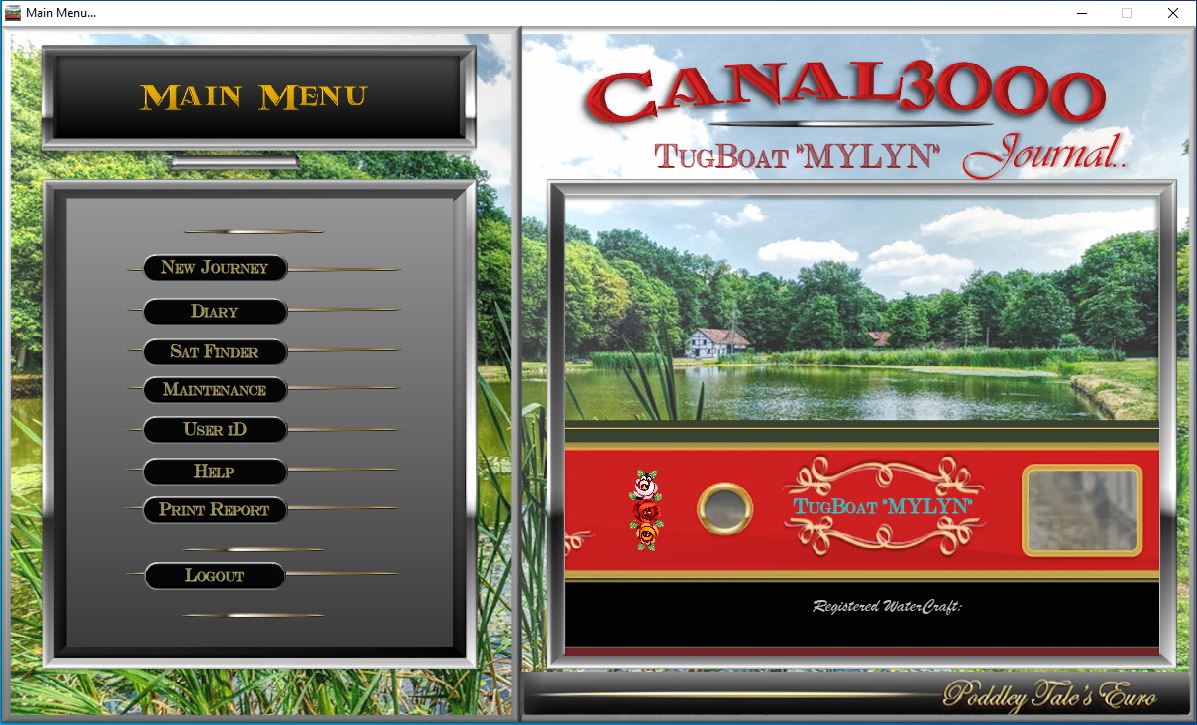

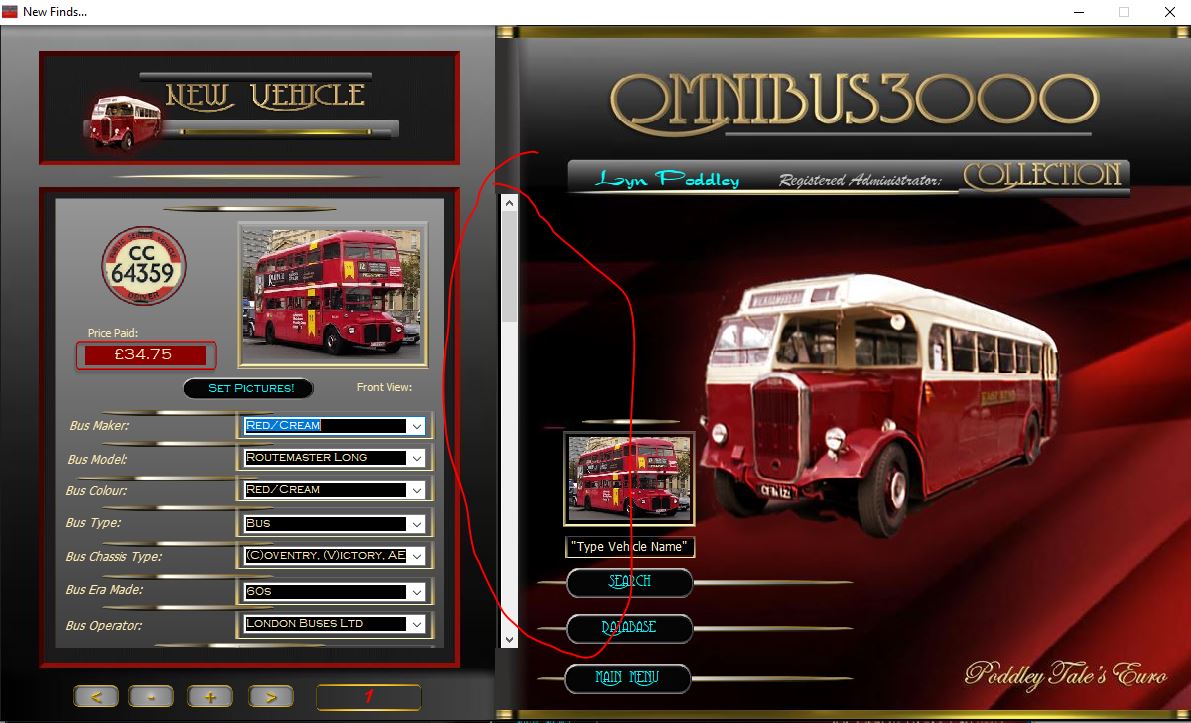

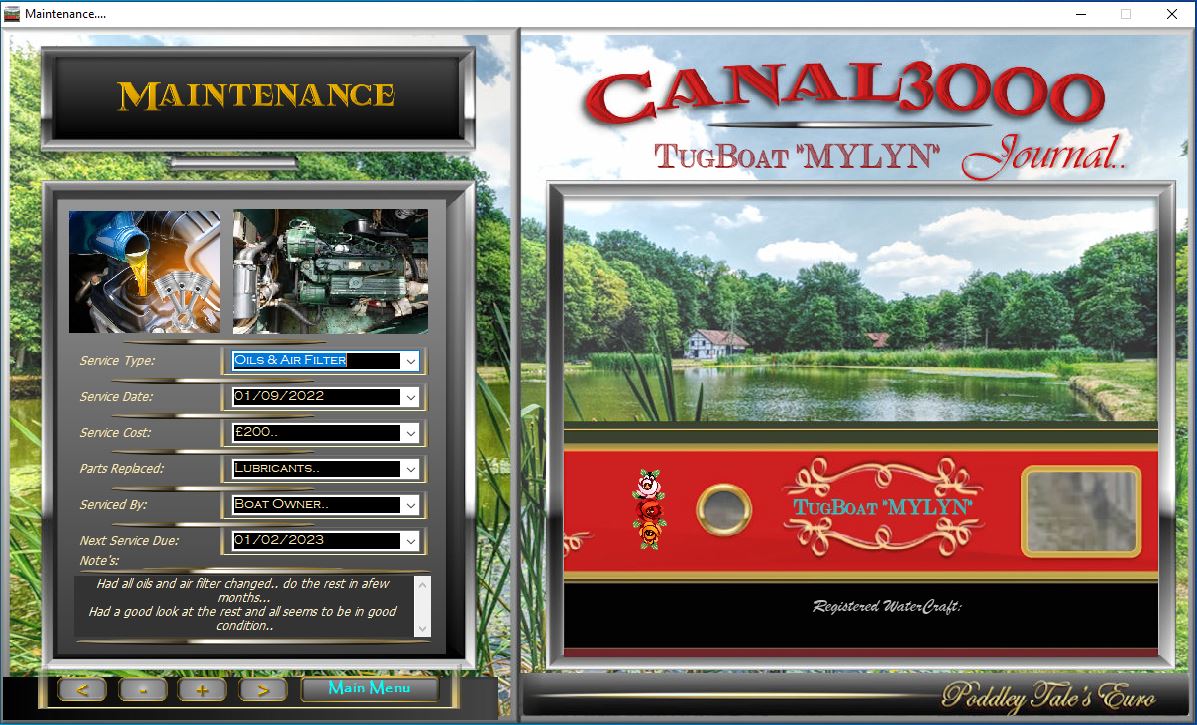

The 5 pics show a scroll Box with 30 fields that overflow is hidden... why is there not one in the Neo Win...

is there a way I can copy from NeoWeb into Neo Win... which I have purchase along with DBPro...

It can't be a Web app.. it has to be Windows PC... with its own Setup.exe etc...

Maybe you can make a demo of this if you have time and find the answer...

Regards

Lyn...





Uploaded files:
  • You need to login to have access to uploads.

but that means I have to make them and sell them on my Servers... I don't want that.

@linda-rainey that's only true for PWA's but not for the other options I have pointed out.
neoEdge, NWjs and HTML Compiler allow local deployment. No need for servers.



Hello Luis..



I have downloaded NeoEdge and don't know how it works it just says blank..

What do I use it with.... is there any demos...

Regards

Lyn...

@linda-rainey please note I have included links to all my suggestions where you can find more information for each one:

There is also a recent blog post about neoEdge.

And a video tutorial:

https://youtu.be/BJ2WreiehhI

Vadim has reacted to this post.
Vadim

Hello Luis ...

Yes I have seen all those links .. but to use a Web Address that uses or stores a database is to my knowledge doesn't exist.. unless PHP that still has to reside on own Webservers ...

And to be Honest... I am too old for messing around with "Scripts" as I have seen in Vids... I give that up years ago...

If I could just make a Win App that is yours that works a simple as my own ... instead "Delphi Rad"... that I have used many years... and costs silly price each year just to keep licence going... whereas your system is best because of one off cost...

Anyway thanks for help...

Lyn...

@linda-rainey try this plugin http://neobooker.ru/forum/37-3710-1

Vadim and danito have reacted to this post.
Vadimdanito

@linda-rainey

If I understand your requirement, you are looking for the middle section of a Container to be ...

1) larger in size than the screen height designated for it
2) scrollable up/down by the user at run time

I have attached a minimalist pub that should be seen as a "proof of concept" ... the key design points are ...

1) the middle section is also a Container which ...

- which can be as large (tall) as your requirements dictate
- is set to Arrange >>> Send to Back
- would host the ListBoxes and associated TextBoxes

2) Every object has its Snap property set to None

3) The TrackBar object is used for user scrolling ... the script in its Value changing event section rolls the inner Container up and down

4) the original (i.e. design time) top and left co-ordinates are set in the PageEnter section ... if the Application is designed to navigate away from this page and returned later, the design time values would need to be saved first.

5) The UI (colours etc.) is ugly; the objective here is to have the developer observe each object clearly.

6) The ListBoxes do not have any script activated upon user selection, as it is not germaine to the "proof of concept".

Uploaded files:
  • You need to login to have access to uploads.
luishp, Vadim and Darbdenral have reacted to this post.
luishpVadimDarbdenral

It would be nice if there was a plugin for this, I think it's a very useful function. It's a shame there are no more developments for this fantastic software which, years later, is still one of the simplest and greatest in the same way.

Hello @linda-rainey   @phil78  @darbdenral  @luishp @mishem @gaev  @sinesi-giuseppe ,

I've been following this thread and saw the discussion about the need for a truly scrollable container in VisualNEO Win. I know how essential this feature is, and the workarounds can be complicated.

I'm happy to announce that I've just released a plugin that solves this problem directly.

The plugin is called Emo_Scrollable container. It adds a native scrollbar to any Container object, so you don't need to build complex solutions with TrackBars or other methods.
You can download here

Regards,
Emo

luishp, dglojnar and iretz have reacted to this post.
luishpdglojnariretz

@emmanuel-fernandez

Perfect companion for VWin/Neobook !

Thank You a lot for Your contribution to our small community with really useful and good plugins !



Have nice weekand/vacation (you deserve it!)



Cheers!



Thank's @dglojnar ,
I have updated now to Version 1.1

To make it easier to build dynamic scrollable lists, I've added a new action: emo_ScrollableContainer_AddObject.

This new action lets you place any VisualNEoWin object (like a picture, text, or button) directly inside your scrollable container at a specific X and Y position.

This simplifies the process of creating complex layouts without manual calculations.

Regards,
Emo

luishp, alangonzalez91 and iretz have reacted to this post.
luishpalangonzalez91iretz

Hello everyone,

I've released a major update Version v2.0  for the Emo Scrollable Container plugin.

The main new feature is support for horizontal scrollbars also.
The
Make action has been updated to accept both a ContentWidth and ContentHeight.
If the content width you provide is larger than the container itself, the horizontal scrollbar will appear automatically.

regards
Emo

Updated to v2.1
This is a maintenance release focused on improving stability, especially when returning to the VisualNEO Win editor after running a publication





luishp, dglojnar and 4 other users have reacted to this post.
luishpdglojnaralangonzalez91CN_IcemanAnthony LaTorreiretz
